0022152046

Manufacturer	Molex, LLC
Description	Conn Socket Strip RCP 4 POS 2.54mm Solder RA Thru-Hole Tray CONN RECEPT 4POS .100 R/A PCB
Category	连接器解决方案矩形连接器电源混合矩形连接器

对参数有疑问？问 AI 助手

商业参数

标准包装数量

Trays

合规参数

RoHS

Lead free / RoHS Compliant

欧盟RoHS

Compliant

电气参数

接触电阻	20	最大额定电流	2.5/Contact
最小输入电压	250V

机械参数

颜色	White	深度	7.9
间距	2.54 mm	高度	4.7
包装方式	Tray	端接方式	Solder
触头类型	Female Socket	外壳颜色	White
安装类型	Through Hole	连接器类型	Receptacle
接触镀层	Tin	排数	1
触头材料	Brass	壳体材料	Nylon
总长度	10.06	触点数	4
位数	4	接触镀层厚度	100µin (2.54µm)

产品信息

类型	Socket Strip	连接器性别	RCP
加载位置数	All

Documents & Media

PDF Document

Resin Color 01/Jan/2002

PDF Document

0022152046_PCB_RECEPTACLES.pdf

PDF Document

22-15-2046

相关型号

0022112042

molex

Conn Wire to Board HDR 4 POS 2.54mm Solder ST Thru-Hole Tube Conn Wire to Board HDR 4 POS 2.54mm Solder ST Thru-Hole Bag CONN HEADER 4POS .100 VERT GOLD

¥2.3372

详情

0022232041

molex

Conn Wire to Board HDR 4 POS 2.54mm Solder ST Thru-Hole Tube Conn Wire to Board HDR 4 POS 2.54mm Solder ST Thru-Hole Bag CONN HEADER 4POS .100 VERT TIN

¥0.9064

详情

0022288042

molex

Conn Unshrouded Header HDR 4 POS 2.54mm Solder RA Thru-Hole Bag CONN HEADER 4POS .100 R/A GOLD

¥1.6932

详情

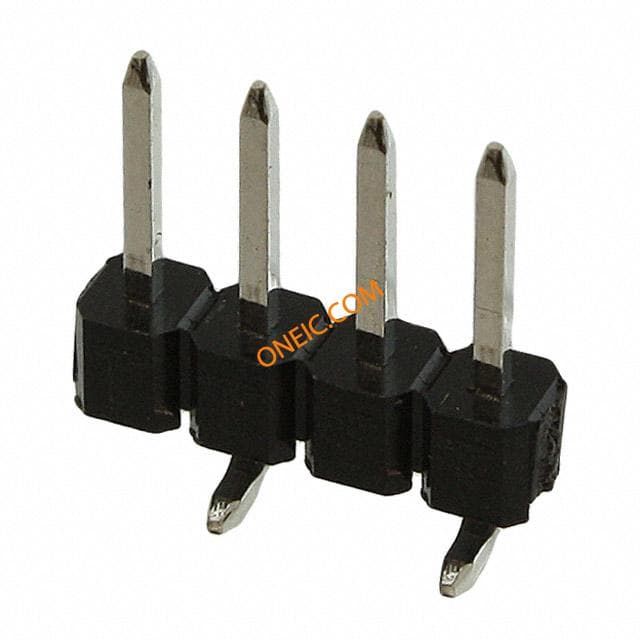

0878980426

molex

Conn Unshrouded Header HDR 4 POS 2.54mm Solder ST SMD Tube CONN HEADER 4POS VERT 2.54MM SMD

¥6.6300

详情

22-28-4048

molex

Conn Unshrouded Header HDR 4 POS 2.54mm Solder ST Thru-Hole Bag CONN HEADER 4POS .100 VERT GOLD Headers & Wire Housings 100 KK Bkwy Hdr Str y Hdr Str 30SAu 4Ckt

¥0.9928

详情

68301-1010

Molex

Headers & Wire Housings Cust. Header 100 SMT 4 CKT CONN HEADER 4POS .100" VERT 15AU

详情

68301-1015

Molex

Headers & Wire Housings 2.54MM BREAKAWAY Vertical 4 CKT CONN HEADER 4POS .100" VERT TIN Conn Unshrouded Header HDR 4 POS 2.54mm Solder ST SMD Tray

¥1.0880

详情

暂无图片

22-28-8045

molex

Conn Unshrouded Header HDR 4 POS 2.54mm Solder RA Thru-Hole Bag CONN HEADER 4POS .100 R/A GOLD Headers & Wire Housings KK 100 Hdr Assy RA B Bkwy 04 Ckt 30 SGold

¥0.8724

详情

暂无图片

0010081042

Molex

Conn Unshrouded Header HDR 4 POS 5.08mm Solder ST Thru-Hole Bag CONN HEADER VERT 4POS TIN

¥1.8564

详情

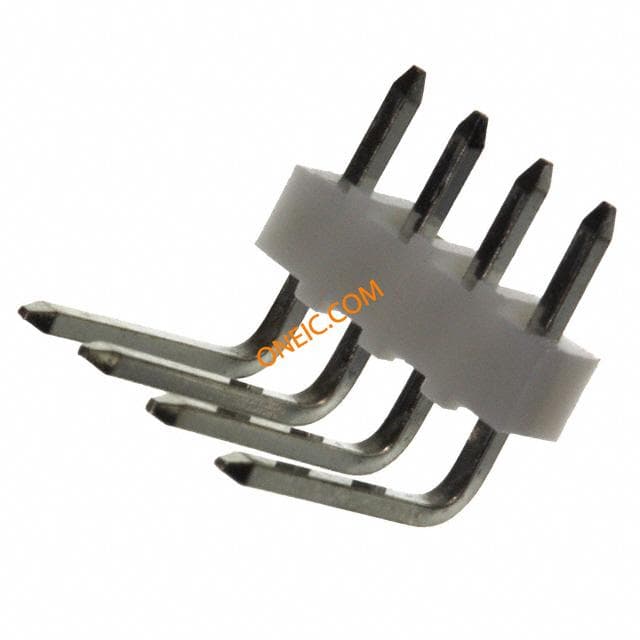

22-05-2041
