点击放大查看
0026604070
| Category |
对参数有疑问？问 AI 助手
Business
| Lead Time | 36 Days | Subcategory | Connector Headers and PCB Receptacles |
| Standard Package | 300 | ||
Compliance
| RoHS | Lead free / RoHS Compliant | EU RoHS | Compliant |
Electrical
| Contact Resistance | 6 mohm | Current Rating (Max) | 7/Contact A |
| Voltage - Input (Min) | 250VAC | Voltage - Supply (Min) | 250VAC |
Mechanical
| Color | Natural | Depth | 10.01 mm |
| Pitch | 0.156" (3.96mm) | Height | 14.73 mm |
| Packaging | Bag | Termination | Solder |
| Contact Form | Male Pin | Contact Type | Male Pin |
| Housing Color | Natural | Mounting Type | Through Hole |
| Connector Type | Header, Unshrouded | Contact Finish | Tin Over Copper |
| Fastening Type | Friction Lock | Mounting Style | Through Hole |
| Number of Rows | 1 | Contact Material | Brass |
| Housing Material | Polyester | Length - Overall | 27.58 mm |
| Height Above Board | 0.450" (11.43mm) | Number of Contacts | 7 |
| Number of Positions | 7 | Contact Length - Mating | 0.450" (11.43mm) |
| Contact Finish Thickness | 60µin (1.52µm) | Number of Positions/Bay/Row | All |
Product Info
| Type | Wire to Board | Gender | HDR |
| Series | KK® 41791 | Industry Aliases | 26-60-4070, 26604070 |
| Output Configuration | Through Hole | Number of Positions Loaded | All |
Environmental
| Operating Temperature | 0C to 75C | ||
Documents & Media
PDF Document
PDF Document
Similar Parts
0009482070
Molex, LLC
$62.7210
Details
0009503071
molex
$0.6465
Details
0009482071
molex
$62.7210
Details
0009523078
molex
$1.8931
Details

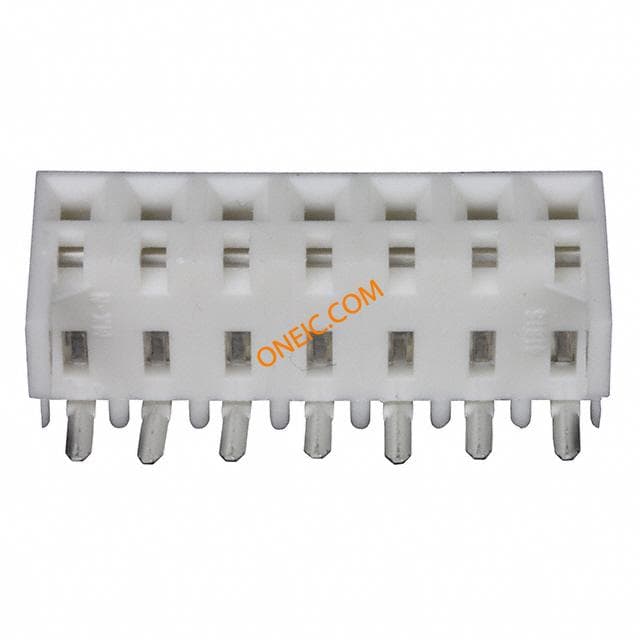

0009483075
Molex
$9.4989
Details
0009521076
Molex
$5.0592
Details
0009930700
Molex
$62.7210
Details
0009485074
Molex
$62.7210
Details
0009485076
Molex, LLC
$7.8812
Details
0009482072
Molex, LLC
$62.7210
Details
0009485075
Molex
$7.4936
Details
0009482078
Molex
$5.3176
Details

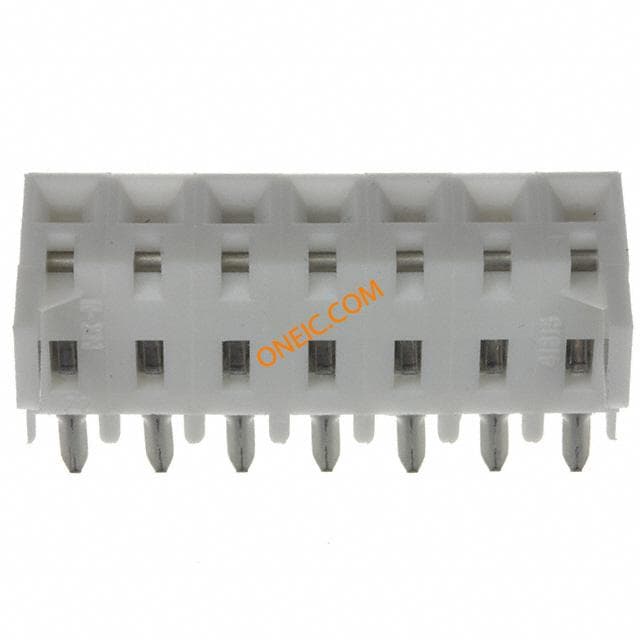

09-48-3076
Molex Connector Corporation
$7.2080
Details

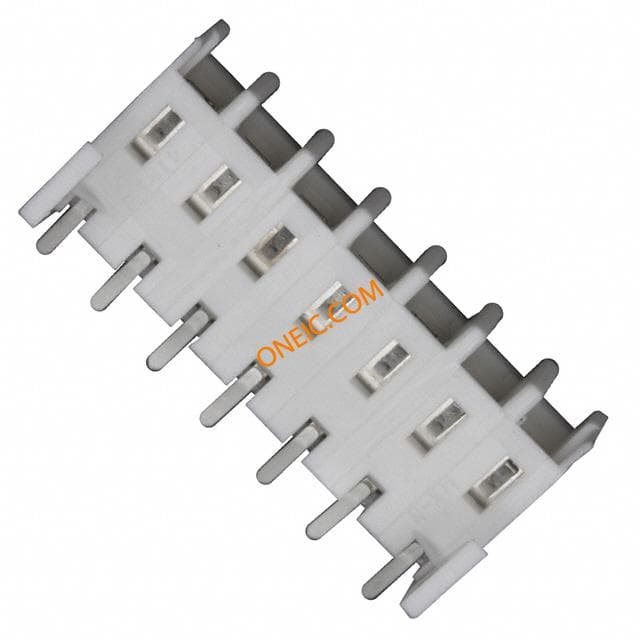

09-48-3074
Molex Connector Corporation
$4.4925
Details

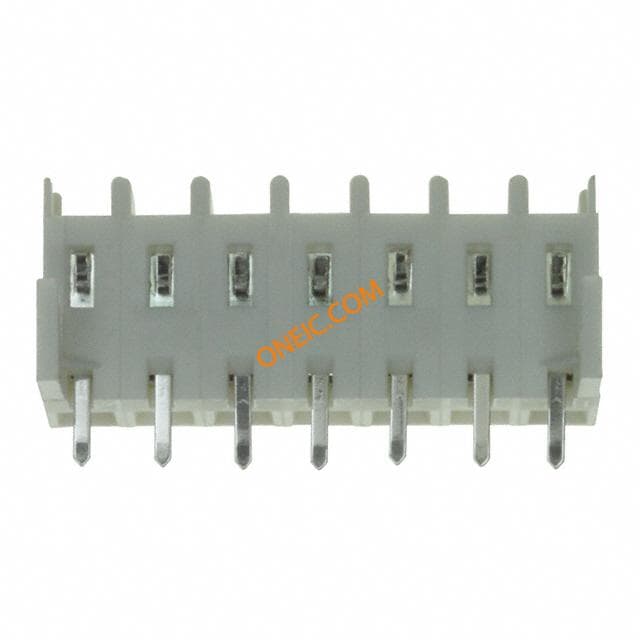

09-48-4079
Molex Connector Corporation
$3.8080
Details
09-52-3071
Molex Connector Corporation
$3.9440
Details

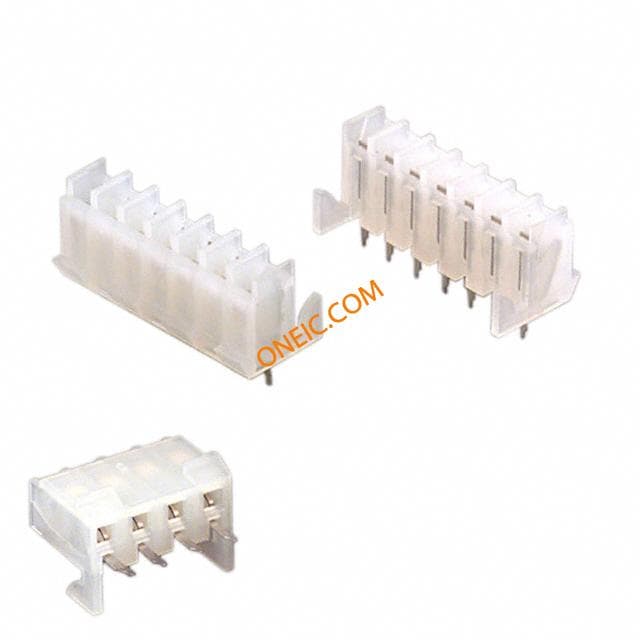

09-62-3072
Molex Connector Corporation
$8.0920
Details
09-52-3072
Molex Connector Corporation
$11.2880
Details
09-50-8073
Molex Connector Corporation
$0.7888
Details

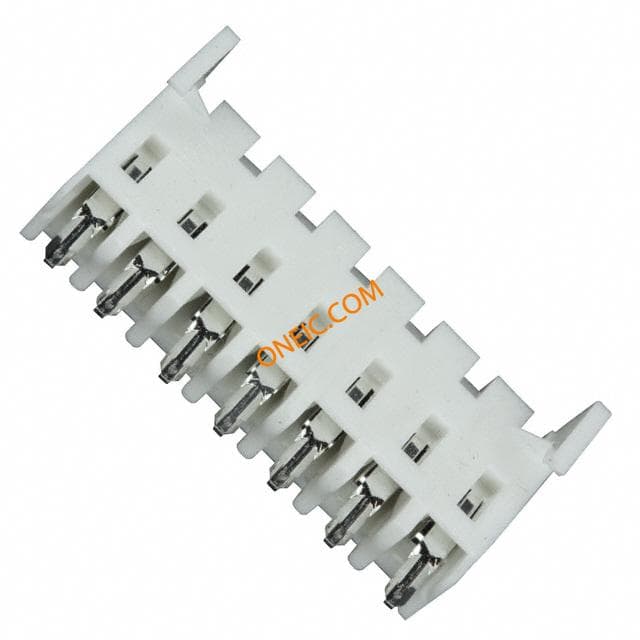

09-48-4078
