0050375053
| Manufacturer | |
| Description | Conn Housing RCP 5 POS 2.5mm Crimp ST Cable Mount Bag CONN HOUSING 5POS 2.5MM SHROUD |
| Category |
Business
| Standard Package | Bulk | ||
Compliance
| RoHS | Lead free / RoHS Compliant | EU RoHS | Compliant |
Electrical
| Current Rating (Max) | 3/Contact A | Voltage - Input (Min) | 250V |
| Voltage - Supply (Min) | 250V | ||
Mechanical
| Depth | 3.9 mm | Pitch | 2.5 mm |
| Height | 8 mm | Packaging | Bag |
| Wire Gauge | 22-28 | Contact Type | Female Socket |
| Mounting Type | Straight | Connector Type | Receptacle |
| Fastening Type | Locking Ramp | Number of Rows | 1 |
| Housing Material | Nylon 66 | Length - Overall | 14.9 mm |
| Number of Contacts | 5 | Contact Termination | Crimp |
| Number of Positions | 5 | ||
Product Info
| Note | Contacts Not Provided | Type | Housing |
| Gender | RCP | ||
Environmental
| Operating Temperature | -40C to 105C | ||
Documents & Media
Similar Parts
0008701039
molex
Contact SKT Crimp ST Cable Mount Reel CONN FEMALE 22-28AWG 2.5MM TIN Conn Contact F 1 POS Crimp ST Cable Mount Reel
0022035055
molex
Conn Shrouded Header HDR 5 POS 2.5mm Solder ST Thru-Hole Bag CONN HEADER 5POS 2.5MM VERT TIN
0008701040
molex
Contact SKT Crimp ST Cable Mount Bag CONN TERM FEMALE 22-28AWG CRIMP Conn Contact F 1 POS Crimp ST Cable Mount Bag
0039000160
molex
2.5 LOW PROFILE CRIMP RECEPTACLE Contact SKT Crimp ST Cable Mount Reel 2.5 LOW PROFILE CRIMP REC
76650-0167
molex
COMPONENT KITS, WIRE TO BOARD KIT 2,3,4,5,6POS 1.5-3A THROUGH HOLE MOUNTING RECEPTACLE, RIGHT ANGLE HEADER, VERTICAL HEADER 2.5MM PITCH 250V 22-28 WIRE SIZE KIT CONN MINI-SPOX 2.5MM Headers & Wire Housings MINISPOX 2.5MM KIT WTB COMPONENT KITS, WIRE TO BOARD KIT 2,3,4,5,6POS 1.5-3A THROUGH HOLE MOUNTING RECEPTACLE, RIGHT ANGLE HEADER, VERTICAL HEADER 2.5MM PITCH 250V ... Kit Description:Vertical and Right Angle Header and Receptacle.Kit Category:Wire to BoardSolution:Off the boardPackaging:Clamshell: 12.75" by 6"Num. Pieces:214

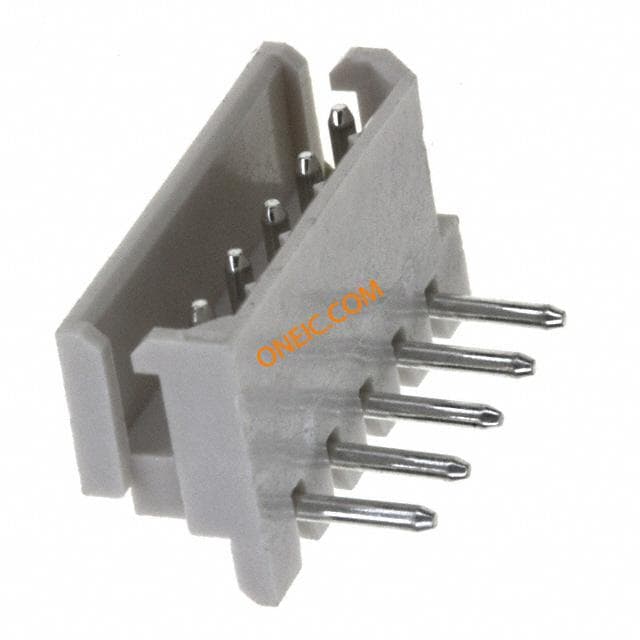

22-05-7055
