点击放大查看

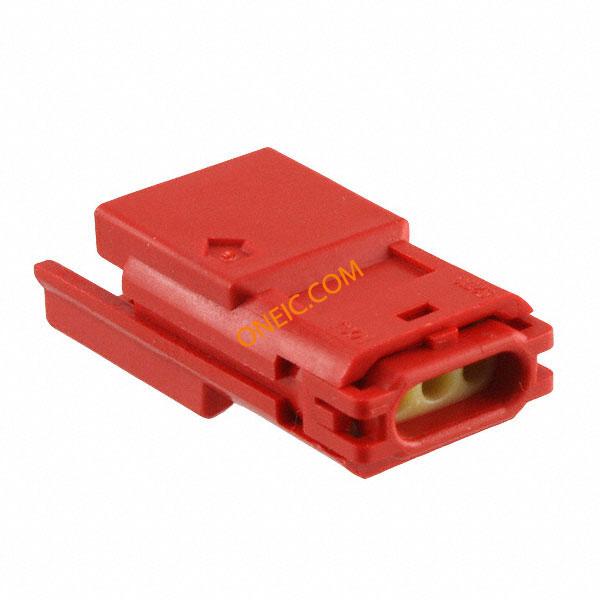

0521160342
| Manufacturer | |
| Description | Conn Housing PL 3 POS 2.5mm Crimp ST Cable Mount Tray CONN PLUG 3POS 2.50MM WTW RED |
| Category |
对参数有疑问？问 AI 助手
商业参数
| 标准包装数量 | Trays | ||
合规参数
| RoHS | Lead free / RoHS Compliant | 欧盟RoHS | Compliant |
电气参数
| 最大额定电流 | 3/Contact | 最小输入电压 | 250V |
机械参数
| 颜色 | Red | 深度 | 25.5 |
| 间距 | 2.5 mm | 高度 | 9.5 |
| 包装方式 | Tray | 导线线规 | 20-22 AWG |
| 触头类型 | Male Pin | 外壳颜色 | Red |
| 安装类型 | Straight | 连接器类型 | Plug |
| 紧固类型 | Detent Lock | 排数 | 1 |
| 壳体材料 | Polyester | 总长度 | 12.4 |
| 触点数 | 3 | 接触件端接 | Crimp |
| 位数 | 3 | ||
产品信息
| 备注 | Contacts Not Provided | 类型 | Housing |
| 连接器性别 | PL | 产品特性 | Waterproof (Mated, IP67) |
环境参数
| 工作温度 | -40°C ~ 105°C | ||
Documents & Media
PDF Document
PDF Document
Online Document
PDF Document
PDF Document
PDF Document
PDF Document
PDF Document
