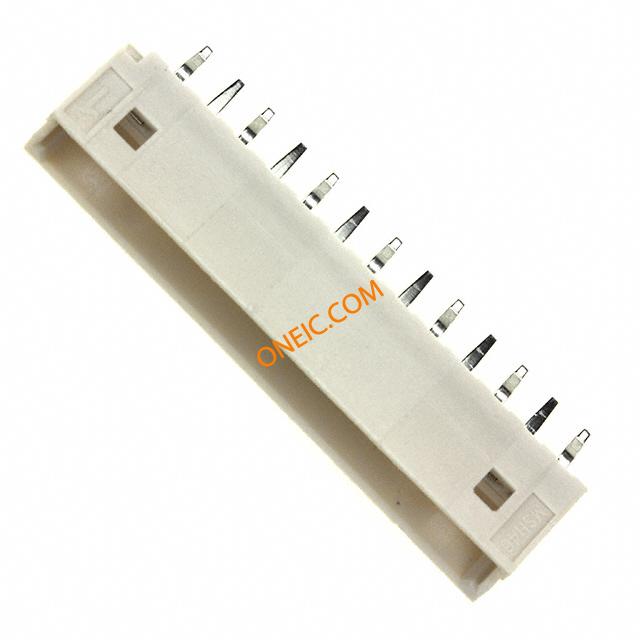

点击放大查看
0530141310
| Manufacturer | |
| Description | Conn Shrouded Header HDR 13 POS 2mm Solder ST Thru-Hole Bag CONN HEADER 2MM 13POS TIN |
| Category |
对参数有疑问？问 AI 助手
商业参数
| 标准包装数量 | 1 | ||
合规参数
| RoHS | Lead free / RoHS Compliant | 欧盟RoHS | Compliant |
电气参数
| 接触电阻 | 20 | 最大额定电流 | 2/Contact |
| 最小输入电压 | 125V | ||
机械参数
| 颜色 | Natural | 深度 | 4.35 |
| 间距 | 0.079" (2.00mm) | 高度 | 5.85 |
| 包装方式 | Bag | 端接方式 | Solder |
| 触头类型 | Male Pin | 外壳颜色 | Natural |
| 安装类型 | Through Hole | 连接器类型 | Header, Shrouded |
| 接触镀层 | Tin | 排数 | 1 |
| 触头材料 | Phosphor Bronze | 壳体材料 | Nylon 66 |
| 总长度 | 28 | 触点数 | 13 |
| 位数 | 13 | 接触长度 - 配合 | 0.122" (3.10mm) |
产品信息
| 类型 | Shrouded Header | 连接器性别 | HDR |
| 加载位置数 | All | ||
环境参数
| 防护等级 | - | 工作温度 | - |
Documents & Media
PDF Document
PDF Document
Online Document
Online Document
PDF Document
PDF Document
PDF Document
PDF Document
