09-50-3021
| Manufacturer | |
| Description | 3.96mm,KK,housing,w/ramp,nylon,2way Headers & Wire Housings HSG 2P W/LKG RAMP UL94V-2 Conn Housing F 2 POS 3.96mm Crimp ST Cable Mount Bag HOUSING FEMALE, 2WAY .156 TERMINAL HOUSING; W/LCK RAMP; 2 CIRCUITS Crimp housing 2P, 09-50-3021, Molex Molex KK 396 系列 3.96mm 节距 2 路 直 母 电缆安装 压接连接器外壳 |
| Category |
Business
| Tradename | KK | Part # Aliases | 0009503021 2139-2A 9503021 |
| Product Category | Headers & Wire Housings | Factory Pack Quantity | 2500 |
Compliance
| RoHS | RoHS Compliant | SVHC | :No SVHC (20-Jun-2013) |
| Tariff No | 85369010 | ||
Electrical
| Range deg/s | :MOLEX - KK 2139 Series | ||
Mechanical
| Depth | 15.88mm | Pitch | 3.96mm |
| Width | 6.4mm | Length | 7.82mm |
| Weight | 0.001 | Mounting Type | Straight |
| Contact Finish | :- | Mounting Style | Wire |
| Number of Rows | 1 | Contact Material | :- |
| Housing Material | Nylon | Termination Style | Crimp |
| 1st Contact Gender | Socket (Female) | Number of Contacts | 2 |
| Contact Termination | :- | ||
Product Info
| Gender | Female | Series | 2139 |
| CAD Drawing | 3D CAD Model | Product Type | Receptacles / Sockets - Housings |
| For Use With/Related Products | KK Connector | ||
Documents & Media
Similar Parts
08-50-0108
molex
Contact SKT Crimp ST Cable Mount Bag KK crimp terminals,22-28awg Headers & Wire Housings TERMINAL 22-26 BULK CONTACT, CRIMP, PLUG, 28-22AWG, PK100 CRIMP PIN, 22-28AWG,PK1K CONTACT, CRIMP, PIN, 28-22AWG .156 SERIES CRIMP TERMINAL; TIN PLAT CONTCT; 22-26AWG Molex KK 396 系列 母 压接接线端子, 压接, 镀锡触点
08-50-0106
molex
Contact SKT Crimp ST Cable Mount Bag KK crimp terminals,18-20awg Headers & Wire Housings TERMINAL 24-18 BULK CONTACT, CRIMP, PLUG, 24-18AWG, PK100 CRIMP PIN, 18-24AWG, PK100 CONTACT, CRIMP, PIN, 24-18AWG Contact; Socket; For0.156In.KKSeries; 24-18AWG; Crimp; TinPlat; BrassCnt; 2478Series Molex KK 396 系列 母 压接接线端子, 压接, 镀锡触点

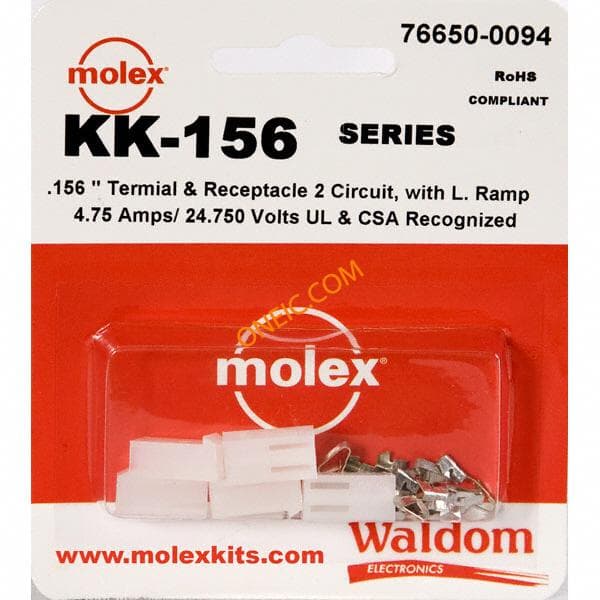

76650-0094
Molex Connector Corporation
KIT .156 KK SERIES 2 CIRC RAMP Headers & Wire Housings KK-156 Connector Kit Recep and term 2Ckt KK-156 Connector Kit Kit Description:.156 Pitch Receptacle and Terminals, 2 CircuitKit Category:Wire to BoardSolution:Off the BoardPackaging:Retail PackNum. Pieces:16 KK-156 CONNECTOR KIT .156 PITCH RECEPT & TERMINALS, 2 CKT

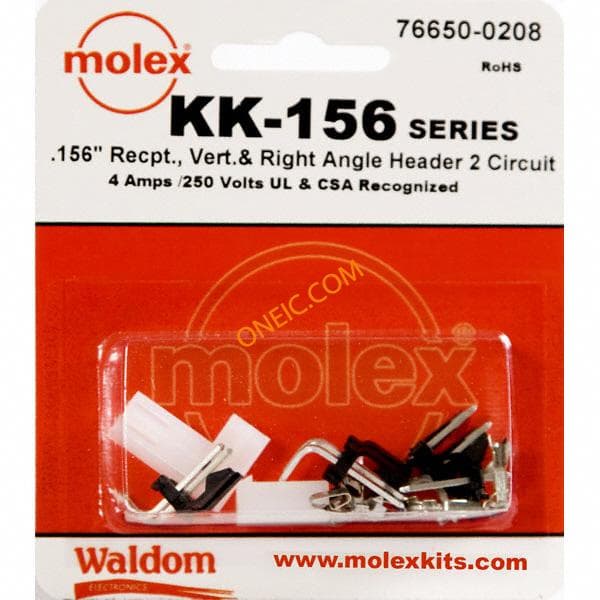

76650-0208
