点击放大查看
09-50-3051
| Category |
对参数有疑问？问 AI 助手
Business
| Tradename | KK | Part # Aliases | 0009503051 2139-5A 9503051 |
| Product Category | Headers & Wire Housings | Factory Pack Quantity | 1500 |
Compliance
| RoHS | RoHS Compliant | SVHC | :No SVHC (20-Jun-2013) |
| Tariff No | 85369010 | ||
Electrical
| Range deg/s | :MOLEX - KK 2139 Series | ||
Mechanical
| Depth | 15.88mm | Pitch | 3.96mm |
| Width | 6.4mm | Length | 19.71mm |
| Weight | 1.93 | Mounting Type | Straight |
| Contact Finish | :- | Mounting Style | Wire |
| Number of Rows | 1 | Contact Material | :- |
| Housing Material | Nylon | Termination Style | Crimp |
| 1st Contact Gender | Socket (Female) | Number of Contacts | 5 |
| Contact Termination | :- | ||
Product Info
| Gender | Female | Series | 2139 |
| CAD Drawing | 3D CAD Model | Product Type | Receptacles / Sockets - Housings |
| For Use With/Related Products | KK Connector | ||
Documents & Media
PDF Document
Similar Parts
09-91-0500
Molex
$7.1808
Details

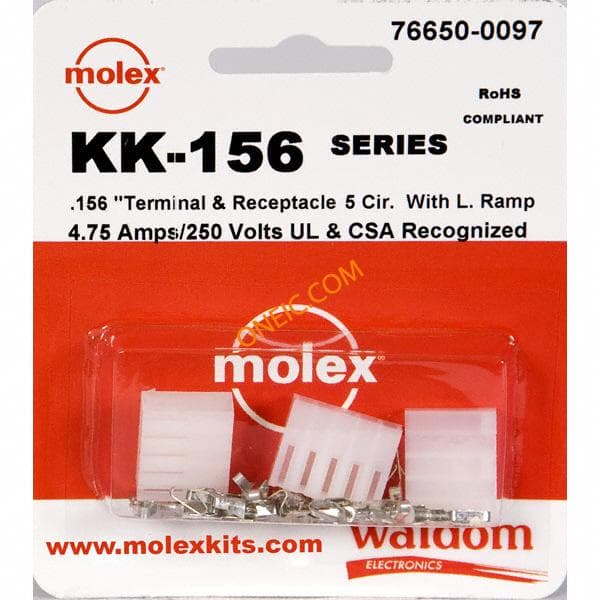

76650-0097
