点击放大查看

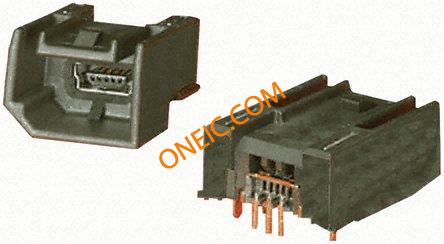

49616-0711
| Manufacturer | |
| Description | Conn USB Type A HDR 5 POS 1.6mm Solder RA Thru-Hole 5 Terminal 1 Port Tray HDR USCAR MINI USB A R/A BLACK Mini B right Angle header, A polarised Automotive Connectors HSAUTOLINK R/A HDR TYPE A USCAR MINI USB B, RECEPTACLE, R/A, POL A Molex HSAutolink 系列 直角 通孔安装, USB2.0 A 型 微型 USB 连接器, 插头, 16 V ac, 1A |
| Category |
Business
| Product | Headers | Tradename | HSAutoLink |
| Part # Aliases | 0496160711 | Product Category | Automotive Connectors |
| Standard Package | Trays | ||
Compliance
| RoHS | Lead free / RoHS Compliant | Tariff No | 85366990 |
| Material Flammability Rating | UL 94 V-0 | ||
Electrical
| Voltage Rating | 16 V ac | Current Rating (Max) | 1A |
Mechanical
| Color | Black | Pitch | 1.6 mm |
| Weight | 0.05 | Packaging | Tray |
| Termination | Solder | Mounting Type | Through Hole |
| Connector Type | USB - mini B | Contact Finish | Gold |
| Mounting Style | Wire to Board | Number of Rows | 1 |
| Contact Material | Copper Alloy | Housing Material | Thermoplastic |
| Termination Style | Solder | Number of Contacts | 5 |
| Contact Termination | :Through Hole Right Angle | Number of Positions | 5 |
| 1st Connector Mounting Type | :PCB | ||
Product Info
| USB | A | Type | USB Type A |
| Gender | HDR | Series | 49616 |
| Features | Shielded | Specifications | USB 2.0 |
| Application Specifics | Wire to Board | ||
Environmental
| Operating Temperature | +85°C | ||
