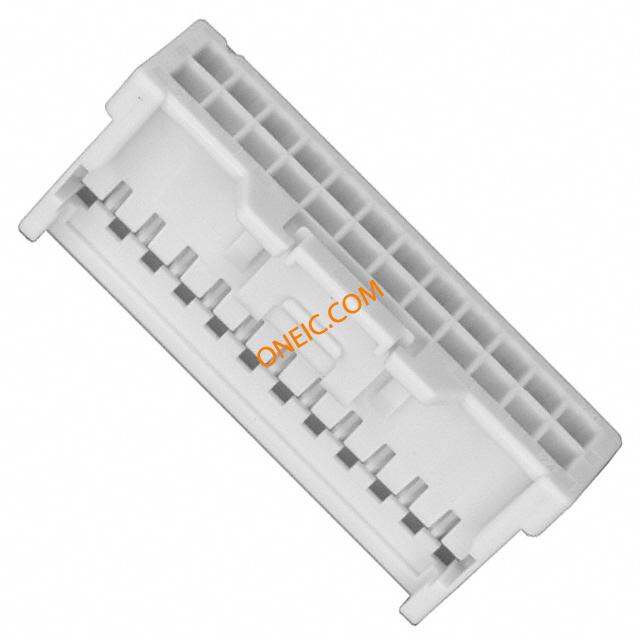

5016462400

Manufacturer	Molex, LLC
Description	Conn Housing RCP 24 POS 2mm Crimp ST Cable Mount Bag CONN RECEPT 24POS 2MM
Category	连接器解决方案矩形连接器FPC/FFC矩形连接器

对参数有疑问？问 AI 助手

商业参数

标准包装数量

合规参数

RoHS

Lead free / RoHS Compliant

欧盟RoHS

Compliant

电气参数

最大额定电流	2/Contact A	最小输入电压	250V
最小供电电压	250V

机械参数

颜色	Natural	深度	11.05 mm
间距	0.079" (2.00mm)	高度	8.3 mm
包装方式	Bag	导线线规	22-28
排间距	0.079" (2.00mm)	触头类型	Female Socket
外壳颜色	Natural	安装类型	Straight
连接器类型	Receptacle	紧固类型	Latch Lock
排数	2	壳体材料	Nylon 66
总长度	26 mm	触点数	24
接触件端接	Crimp	位数	24

产品信息

备注	Contacts Not Provided	类型	Housing
连接器性别	RCP

环境参数

工作温度

-25C to 85C

Documents & Media

PDF Document

501646-zz0z Series Drawing

相关型号

5016471000

molex

2.0 W/B DUAL GRID RCPT CRMP TERCHN Contact SKT Crimp ST Cable Mount Reel CONN TERM FEMALE 22-26AWG TIN

¥0.2446

详情

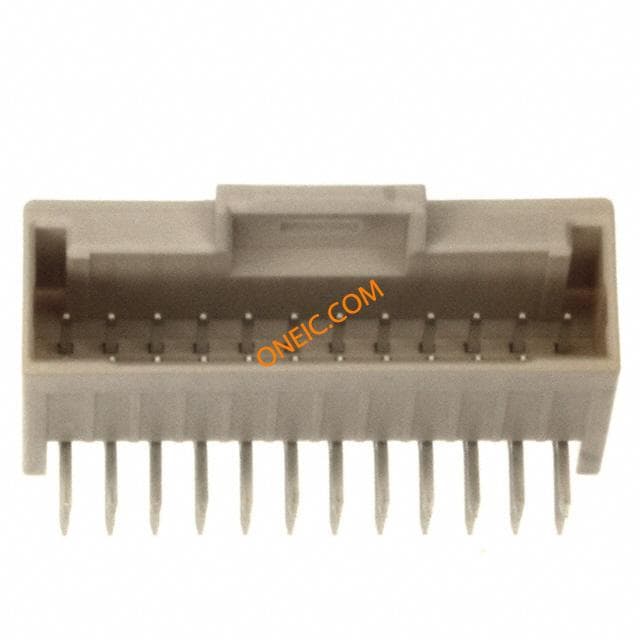

5018762440
