502380-0200
| Manufacturer | |
| Description | 2w s/r 1.25mm crimp housing Headers & Wire Housings 2P CLIKMATE PLUG POSITIVE LOCK 1.25mm Pitch CLIK-Mate™ Wire-to-Board Housing, Single Row, Positive Lock, 2 Circuits Crimp housing Pitch1.25 mm Poles 2 CLIK-Mate™, 502380-0200, Molex Molex CLIK-MATE 系列 1.25mm 节距 2 路 直 公 电缆安装 压接连接器外壳 |
| Category |
Business
| Tradename | CLIK-Mate | Product Category | Headers & Wire Housings |
| Factory Pack Quantity | 1000 | ||
Compliance
| RoHS | RoHS Compliant | Material Flammability Rating | UL 94 V-0 |
Electrical
| Voltage Rating | 50 V | Number of Poles | 2 |
| Current Rating (Max) | 1 A | Connector - Voltage Input | Plug |
Mechanical
| Depth | 7.05mm | Pitch | 1.25mm |
| Width | 5.45mm | Length | 5.6mm |
| Orientation | 直 | Mounting Type | Straight |
| Connector Type | 公插 | Number of Rows | 1 |
| Housing Material | PBT | Number of Contacts | 2 |
Product Info
| Type | Plug Housing | Gender | Male |
| Series | 502380 | CAD Drawing | 3D CAD Model |
| Product Type | Wire Housings | Connection Method | Wire-Board |
| Base Product Number | 502380 | Application Specifics | Signal, Wire-to-Board |
| For Use With/Related Products | CLIK-Mate Wire-to-Board Connector | ||
Environmental
| Operating Temperature | -25...+85 °C | ||
Similar Parts
63811-8200
molex
Connector Accessories Hand Crimp Tool Crimpers HAND CRIMP TOOL KK parallel action tool,0.1in pitch Hand Crimp Tool HAND CRIMP TOOL Hand Crimp Tool; use with 2.54mm KK Terminals 22-30AWG; Crimping plier, 63811-8200, Molex Molex HANDTOOL 系列 KK Crimp Terminals 压接工具 , 适用于22 → 30 AWG 线规格

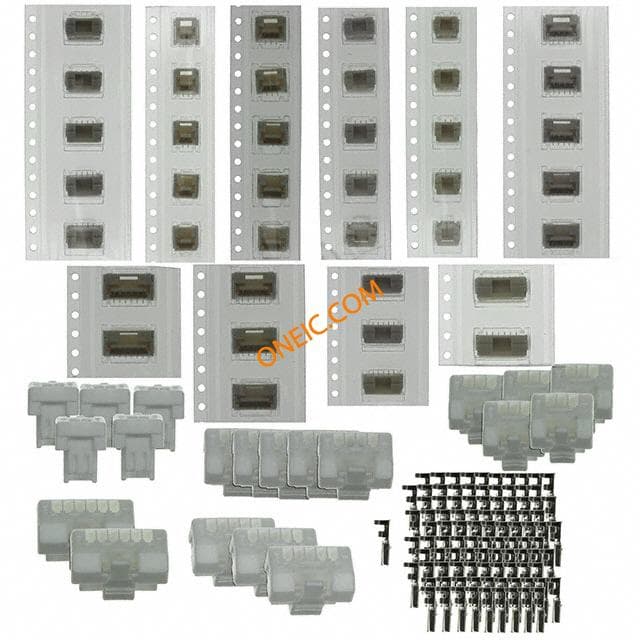

76650-0185
