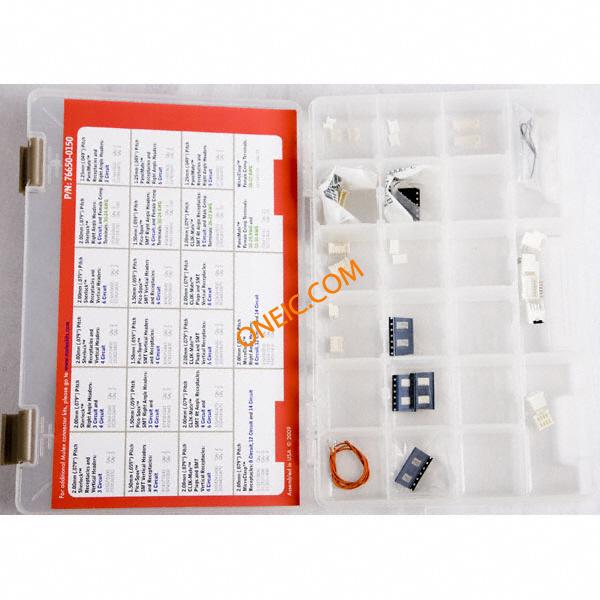

76650-0150
| Manufacturer | |
| Description | COMPONENT KITS, WIRE TO BOARD AND WIRE TO WIRE KIT 12,14,2,3,4,6,8,9POS 1A,2A,3A PANEL MOUNT, THROUGH HOLE, SURFACE MOUNT PLUGS,RECEPTACLE,RIGHT ANGLE HEADER, VERTICAL HEADER 1.25MM PITCH 125V,250V,30V,50V 22-26,24-30,30-28,32-30 WIRE SIZE KIT CONN MULTI MICRO WTB Headers & Wire Housings MICRO CONN KIT APPLIANCE COMPONENT KITS, WIRE TO BOARD AND WIRE TO WIRE KIT 12,14,2,3,4,6,8,9POS 1A,2A,3A PANEL MOUNT, THROUGH HOLE, SURFACE MOUNT PLUGS,RECEPTACLE,RIGHT ANGLE ... Kit Description:Includes CLIK-Mate, PanelMate, Sherlock, Pico-Spox and MicroClasp Prodcut Families. Pitches range: 1.25mm (.049") - 2.00mm (.079"). Positive and Friction Lock.Kit Category:Wire to Wire and Wire to BoardSolution:Off the Board and Free HangingPackaging:Tackle Box: 11" by 7.25"Num. Pieces:403 MICRO MINIATURE APPLICATION KIT |
| Category |
商业参数
| 商标名 | CLIK-Mate, PanelMate, Sherlock, Pico-SPOX, MicroClasp | 标准包装规格 | 1 |
| 零件号别名 | 0766500150 | 产品类别 | Headers & Wire Housings |
| 标准包装数量 | Bulk | ||
合规参数
| RoHS | Lead free / RoHS Compliant | ||
电气参数
| 额定电压 | 30 V, 50 V, 125 V, 250 V | 最大额定电流 | 1 A, 2 A, 3 A |
机械参数
| 包装方式 | Plastic Box with Bin Guide | 导线线规 | 32-30, 30-28, 30-24, 26-22 |
| 连接器类型 | Receptacles, Plugs and Headers | 端接样式 | IDC |
| 第一触头极性 | Pin (Male), Socket (Female) | ||
产品信息
| 系列 | 76650 | 值 | 403 pcs - Assorted 2 ~ 4, 6, 8, 9, 12, 14 Header, Housing, 32 ~ 22 AWG Crimp Terminals |
| 套件类型 | Contact, Header, Housing | 制造商全称 | 76650 |
| 产品子类型 | Connector Kits | 配置 | Wire-to-Board, Wire-to-Wire |
| 电路数 | 2, 3, 4, 6, 8, 9, 12, 14 | ||
