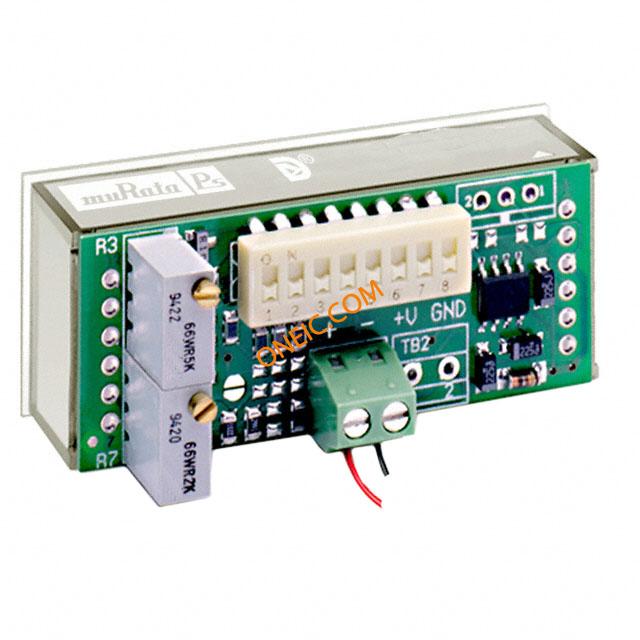

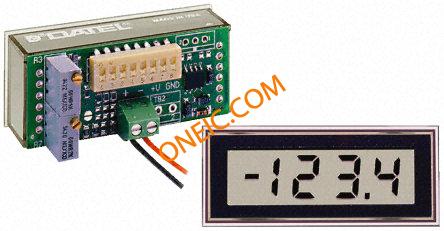

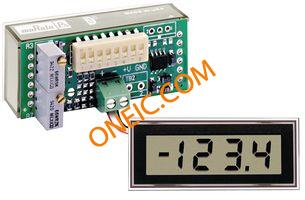

DMS-30LCDA-4/20S-C
| Manufacturer | |
| Description | 4-20MA LCD LOOP-POWER 3.5 DIG METER LCD SELF-POWERED 3.5DIG Murata LCD Digital Panel Ammeter 3.5-Digits ±1% 0°C To +60°C, 53.8 x 22.3mm Digital Panel Meters 4-20mA / 1.8V Drop Unipolar Read Meter LOOP POWERED METER Murata 3.5位 LCD 数字电流表 , 53.8 x 22.3 mm, 0°C 至 +60°C |
| Category |
商业参数
| 最小起订量 | 12 | 交货时间 | 84 Days |
| 单位包装 | 12 | 子类别 | Misc Products |
| 零件号别名 | DMS-30LCDA-4/20S-C | 产品类别 | Digital Panel Meters |
| 标准包装数量 | 12 | ||
合规参数
| RoHS | Lead free / RoHS Compliant | 海关税号 | 00000000 |
电气参数
| 精度 | ±0.05% + 1 digit | 显示类型 | LCD |
| 供电电流 | 4 mA to 20 mA | 供电电压 | 4 ~ 20mA, Loop Power |
| 输入偏置电流（最大） | 4 mA to 20 mA | ||
机械参数
| 深度 | 21.88mm | 宽度 | 55 mm |
| 重量 | 0.036 | 包装方式 | Case |
| 端接方式 | Screw Terminals | 安装类型 | Bezel Mount or Panel Mount, Rear Mounting Clip |
| 安装样式 | Panel | 封装形式 | 24 mm |
| 尺寸/外形 | 24 mm L x 55 mm W x 23 mm H | 端接排数 | 53.8mm |
| 端接样式 | Screw Terminal | 面板开孔尺寸（外形） | Rectangular - 53.80mm x 22.30mm |
| 显示字符高度 | 0.402" (10.20mm) | ||
产品信息
| 类型 | Process Meter | 系列 | DMS-30LCDA-4/20 |
| 产品特性 | Bezel Sold Separately, Dipswitch Selection | 功能 | Digits Only |
| 面板尺寸 | 2.55" W x 1.27" H (64.8mm x 32.3mm) | 校准 | Self Calibrating |
| 显示样式 | Black Characters, Grey Background | 字符尺寸 | :10.2mm |
| 显示位数 | 3.5 | 设备类型 | Meters - Line Powered |
| 测量范围 | 4 ~ 20mA | 位数或字符数 | 3.5 |
| 每行字符数 | 3.5 | 适用产品/相关产品 | DMS-30LCDA-4/20S |
环境参数
| 工作温度 | 0°C ~ 60°C | 最高温度限值 | +60°C |
