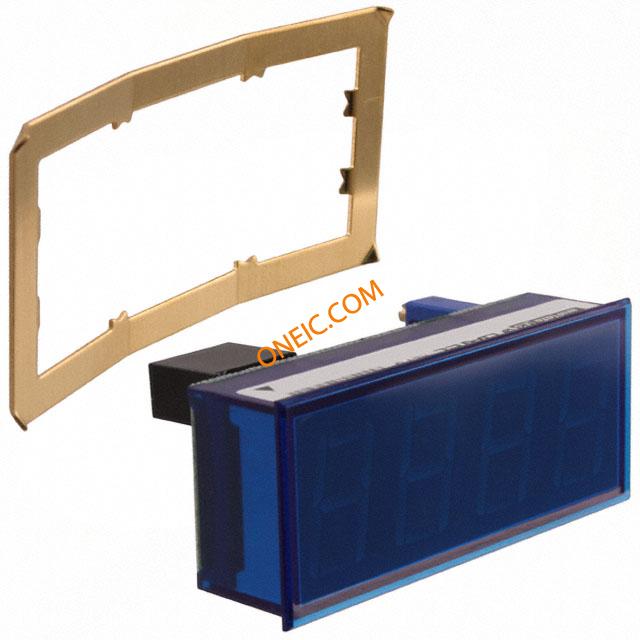

DMS-30PC-4/20S-24BS-I-C
| Manufacturer | |
| Description | 4-20MA BLU LED 24V-PWR 3.5 DIG DPM LED 24V SUPPLY 3.5DIG BLUE Digital Panel Meters 4-20mA 3.5Digit+24V Hi-Intense Blue CURRENT METER |
| Category |
商业参数
| 最小起订量 | 12 | 交货时间 | 84 Days |
| 单位包装 | 12 | 子类别 | Misc Products |
| 零件号别名 | DMS-30PC-4/20S-24BS-I-C | 产品类别 | Digital Panel Meters |
| 标准包装数量 | 12 | ||
合规参数
| RoHS | Lead free / RoHS Compliant | 海关税号 | 90303100 |
电气参数
| 精度 | ±0.05% + 1 digit | 显示类型 | LED |
| 供电电流 | 60 mA | 供电电压 | 24VDC (Isolated) |
| 输入偏置电流（最大） | 4 mA to 20 mA | ||
机械参数
| 宽度 | 55 mm | 重量 | 0.002 |
| 包装方式 | Case | 端接方式 | Screw Terminals |
| 安装类型 | Bezel Mount or Panel Mount, Rear Mounting Clip | 安装样式 | Panel, Board |
| 封装形式 | 26 mm | 尺寸/外形 | 26 mm L x 55 mm W x 23 mm H |
| 端接样式 | Solder Pin | 面板开孔尺寸（外形） | Rectangular - 53.80mm x 22.30mm |
| 显示字符高度 | 0.559" (14.20mm) | ||
产品信息
| 类型 | Process Meter | 系列 | DMS-30PC-4/20S |
| 产品特性 | Bezel Sold Separately, Dipswitch Selection, Mounting Clip | 功能 | Current loop input |
| 面板尺寸 | 2.55" W x 1.27" H (64.8mm x 32.3mm) | 校准 | Self Calibrating |
| 显示样式 | Blue Characters, Black Background | 字符尺寸 | :14.2mm |
| 显示位数 | 3.5 | 设备类型 | Meters - Line Powered |
| 测量范围 | 4 ~ 20mA | 位数或字符数 | :3-1/2 |
| 每行字符数 | 3.5 | 适用产品/相关产品 | DMS-30PC-4/20S-24BS-I |
环境参数
| 工作温度 | 0°C ~ 60°C | ||
