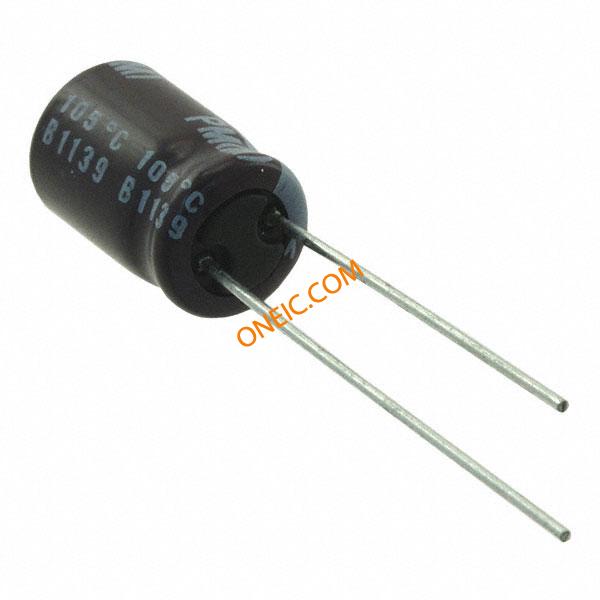

UPM2A220MPD
| Category |
对参数有疑问？问 AI 助手
Business
| Product | Low Impedance Electrolytic Capacitors | Product Category | Aluminum Electrolytic Capacitors - Leaded |
| Factory Pack Quantity | 200 | ||
Compliance
| RoHS | RoHS Compliant | SVHC | :No SVHC (20-Jun-2013) |
| Tariff No | 85322200 | ||
Electrical
| Impedance | :0.55ohm | Tolerance | 20 % |
| Capacitance | 22 uF | Range deg/s | :NICHICON - PM Series |
| Voltage Rating | 100 V | Current - Leakage | 66 uA |
| Capacitance - Input | :Radial Leaded | Impedance @ Frequency | :100kHz |
| Dissipation Factor (DF) | 0.08 | Ripple Current @ Low Frequency | :122mA |
| Ripple Current @ High Frequency | 275 mA | ||
Mechanical
| Height | :11.5mm | Length | :11.5mm |
| Weight | 0.002 | Diameter | 8 mm |
| Termination | Radial | Lead Spacing | 3.5 mm |
| Pin Diameter | :0.6mm | Terminal Type | :Wire Ended |
| Number of Pins | :2 | Package / Case | 11.5 mm |
| Material - Blade | AluminumElectrolytic | Size / Dimension | 8 mm Dia. x 11.5 mm L |
| Termination Style | Radial | Shell Size - Insert | 8mmDia.x11.5mmL |
Product Info
| Type | Extremely Low Impedance, High Reliability | Series | PM |
Environmental
| Rated Life | 3000 hr | Operating Temperature | - 55 C to + 105 C |
| Thermal Resistance @ Natural | :20°C | Operating Temperature - Junction | :3000h |
