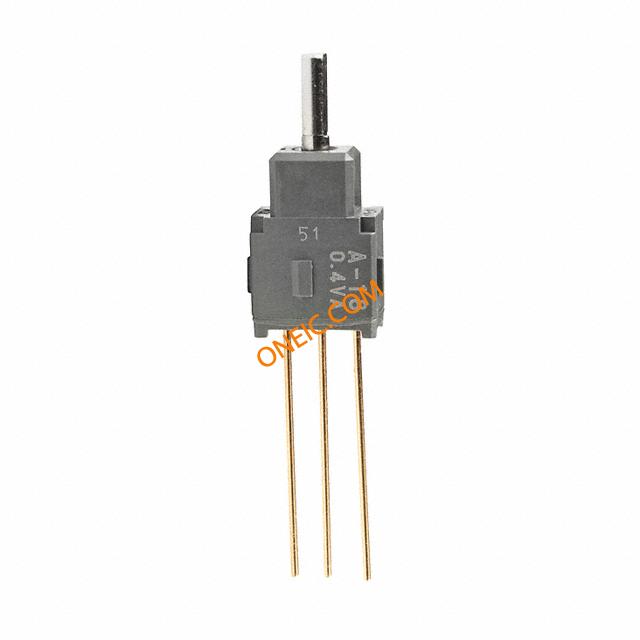

A18HW
| Manufacturer | |
| Description | Toggle Switches (ON)OFF(ON) .248 FLT EXTENDED PC .4VA SWITCH TOGGLE SPDT 0.4VA 28V |
| Category |
对参数有疑问？问 AI 助手
Business
| Part # Aliases | A-18HH-EOF | Product Category | Toggle Switches |
| Standard Package | 1 | ||
Compliance
| RoHS | RoHS Compliant | ||
Electrical
| Circuit | SPDT | Power - Rated | 0.4 VA |
| Voltage Rating | 28 V | Switch Function | (ON) - OFF - (ON) |
| Current Rating (Max) | 0.1 A | ||
Mechanical
| Packaging | Tube | Contact Form | SPDT |
| Actuator Type | Toggle | Mounting Type | Through Hole |
| Bushing Thread | Unthreaded, Square | Contact Finish | Gold |
| Mounting Style | Through Hole | Actuator Length | 6.30mm |
| Actuator Material | Brass, Nickel Plated | Termination Style | Straight PC Long |
Product Info
| Series | A | Features | Process Sealed |
| Illumination | Not Illuminated | Electrical Life | 50,000 Cycles |
Environmental
| Seal Rating | Epoxy | Operating Temperature | -30°C ~ 85°C |
