AS13AV
| Manufacturer | |

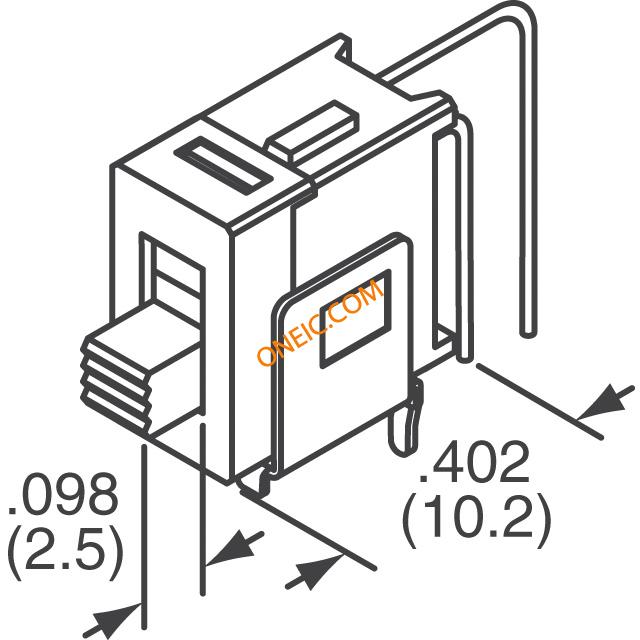

| Description | Switch Slide ON OFF ON SPDT Side Slide 0.1A 28VAC 28VDC 0.4VA 50000Cycles PC Pins Bracket Mount/Through Hole SWITCH SLIDE SPDT .4VA BRKT 28V SUBMINIATURE SLIDE SPDTONOFFON,.098InLong,*Verticalw/Bracket |
| Category |
对参数有疑问？问 AI 助手
Business
| Standard Package | 1 | ||
Compliance
| RoHS | Lead free / RoHS Compliant | EU RoHS | Compliant |
| Tariff No | 85365019 | ||
Electrical
| Circuit | SPDT | Power - Rated | 0.4@28VAC 28VDC |
| Voltage Rating | 28 | Switch Function | On-Off-On |
| Current Rating (Max) | 0.1@28VAC 28VDC | Voltage - Input (Min) | 28 |
| Switch Function/Rating | ON OFF ON | Contact Rating @ Voltage | 0.4VA @ 28VAC/DC |
Mechanical
| Depth | 17.8 | Height | 10.2 |
| Weight | 0 | Orientation | Vertical, Right Angle |
| Actuator Type | Standard | Mounting Type | Bracket Mount/Through Hole |
| Terminal Type | PC Pins | Contact Finish | Gold |
| Contact Material | Phosphor Bronze | Length - Overall | 5.7 |
| Actuator Material | Glass Fiber/Polyamide | Termination Style | PC Pin |
| Actuator Style/Size | Side Slide | Switch Actuation Level | SPDT |
Product Info
| Type | Sub-Miniature | Electrical Life | 50000 |
Environmental
| Mechanical Life | 50000 | Operating Temperature | 85 |
