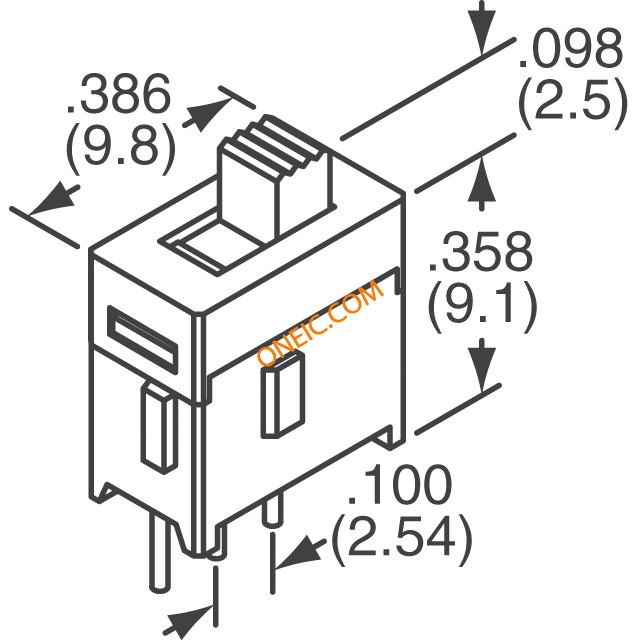

AS22AP
| Manufacturer | |
| Description | Slide Switches DPDT ON-ON .098 STRAIGHT Switch Slide ON None ON DPDT Top Slide 0.1A 28VAC 28VDC 0.4VA 50000Cycles PC Pins Thru-Hole SWITCH SLIDE DPDT .4VA PCB 28V SUBMINIATURE SLIDE Switch,slide;DPDTONNONEON,.098"Long,Straight |
| Category |
对参数有疑问？问 AI 助手
Business
| Other Names | 360-2127 | Part # Aliases | AS-22AP |
| Product Category | Slide Switches | Standard Package | 1 |
Compliance
| RoHS | Lead free / RoHS Compliant | EU RoHS | Compliant |
| Tariff No | 85365019 | ||
Electrical
| Circuit | DPDT | Power - Rated | 0.4@28VAC 28VDC |
| Voltage Rating | 28 V | Switch Function | On-On |
| Voltage - Rated AC | 28V VAC | Current Rating (Max) | 0.1 A |
| Voltage - Input (Min) | 28 | Switch Function/Rating | ON None ON |
| Contact Rating (Current) | 0.4 VA at 28 V | Contact Rating @ Voltage | 0.4VA @ 28VAC/DC |
| Voltage - DC Spark Over (Nom) | 28V VDC | ||
Mechanical
| Depth | 9.2 mm | Height | 11.6 mm |
| Weight | 0 | Orientation | Vertical |
| Contact Form | DPDT | Travel Range | 2.5 mm |
| Actuator Type | Standard | Mounting Type | Through Hole |
| Terminal Type | PC Pins | Contact Finish | Gold |
| Mounting Style | Through Hole | Contact Material | Phosphor Bronze |
| Length - Overall | 9.8 mm | Actuator Material | Glass Fiber/Polyamide |
| Termination Style | PC Pin | Actuator Style/Size | Top Slide |
| Switch Actuation Level | DPDT | ||
Product Info
| Type | Sub-Miniature | Illumination | Non-Illuminated |
| Electrical Life | 50000 | ||
Environmental
| Mechanical Life | 50000 | Operating Temperature | - 30 C to + 85 C |
| Operating Temperature - Junction | 85C | ||
