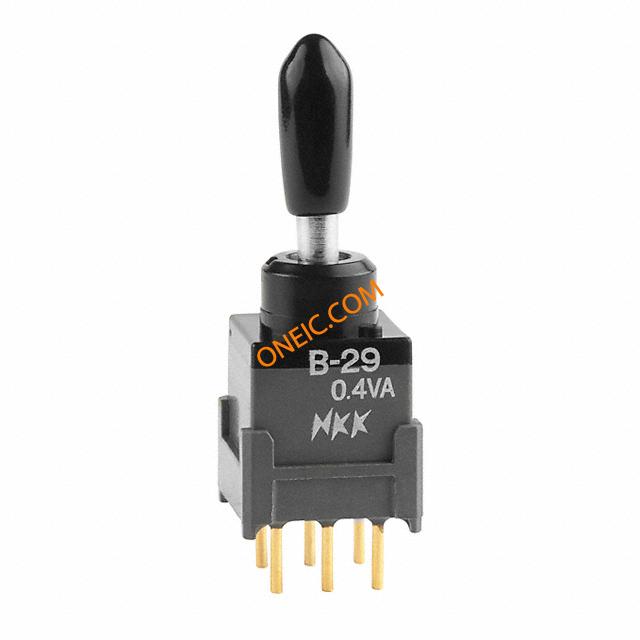

B29AP-GA
| Manufacturer | |
| Description | Toggle Switches ON-OFF-(ON) .394 BAT STRT PC .4VA Switch Toggle ON OFF (ON) DPDT Bat Toggle PC Pins 0.1A 28VAC 28VDC 0.4VA PC Mount SWITCH TOGGLE DPDT 0.4VA 28V DPDTONOFF(ON),.394InBat,Straight,.394InBatLeverCap,Black |
| Category |
对参数有疑问？问 AI 助手
Business
| Product Category | Toggle Switches | Standard Package | 1 |
Compliance
| RoHS | RoHS Compliant By Exemption | EU RoHS | Compliant |
Electrical
| Circuit | DPDT | Power - Max | 0.4 W |
| Power - Rated | 0.4 VA | Voltage Rating | 28 V |
| Switch Function | ON - OFF - (ON) | Voltage - Rated AC | 28V VAC |
| Current Rating (Max) | 0.1 A | Voltage - Input (Min) | 28 |
| Switch Function/Rating | ON OFF (ON) | Voltage - DC Spark Over (Nom) | 28V VDC |
Mechanical
| Depth | 8.8 mm | Height | 23.1 mm |
| Packaging | Bulk | Contact Form | DPDT |
| Actuator Type | Bat | Mounting Type | PC Mount |
| Terminal Type | PC Pins | Bushing Thread | Unthreaded |
| Contact Finish | Gold | Mounting Style | Through Hole |
| Actuator Length | 10.00mm | Contact Material | Phosphor Bronze |
| Length - Overall | 8.8 mm | Actuator Material | Brass, Nickel Plated |
| Termination Style | PC Pin | Actuator Style/Size | Bat Toggle |
| Switch Actuation Level | DPDT | ||
Product Info
| Type | Sealed Sub-Miniature | Series | B |
| Features | Black Cap | Illumination | Not Illuminated |
| Electrical Life | 50,000 Cycles | ||
Environmental
| Seal Rating | Epoxy | Mechanical Life | 50000 |
| Operating Temperature | -30°C ~ 85°C | Operating Temperature - Junction | 85C |
