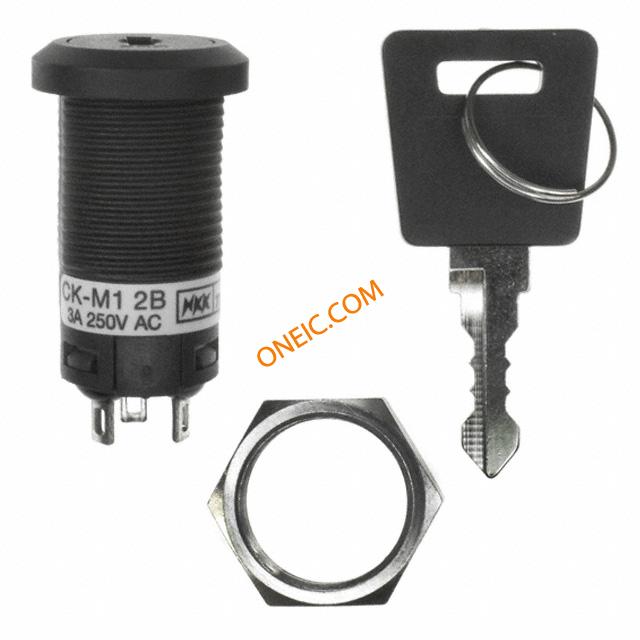

CKM12BFW01-002
| Manufacturer | |
| Description | Keylock Switches 16MM ON-ON FLAT KEY #002 RMVBLE 1 POS 3A SW KEYLOCK 16MM KEYCODE 002 250V SWITCH, KEY OPERATED, SPDT, 3A, 250VAC |
| Category |
对参数有疑问？问 AI 助手
Business
| Other Names | CKM12BFW01002 | Part # Aliases | CK-M12BFS1-UNC-002 |
| Product Category | Keylock Switches | Standard Package | 1 |
Compliance
| RoHS | RoHS Compliant | Tariff No | 85365080 |
Electrical
| Circuit | SPDT | Voltage Rating | 250 V |
| Switch Function | ON - NONE - ON | Current Rating (Max) | 3 A |
| Current - Max/Contact | :3A | Switch Function/Rating | :On-None-On |
| Contact Rating @ Voltage | 3 A at 250 V | Voltage - Rated AC (Phase to Ground/Neutral) | :250V |
Mechanical
| Weight | 0 | Contact Form | SPDT |
| Actuator Type | Flat Key | Mounting Type | Panel Mount |
| Angle of Throw | 90° | Contact Finish | Silver |
| Housing Material | Polybutylene Terephthalate, Glass Fiber Reinforced | Termination Style | Solder Lug |
| Actuator Style/Size | :Flat | Number of Positions | 2 |
| Bushing, Grommet Type | 16 mm | Contact Layout, Typical | :SPDT |
Product Info
| Key Type | Flat | Other Specifications | 90 deg |
| Key Removable Positions | 1 only | ||
