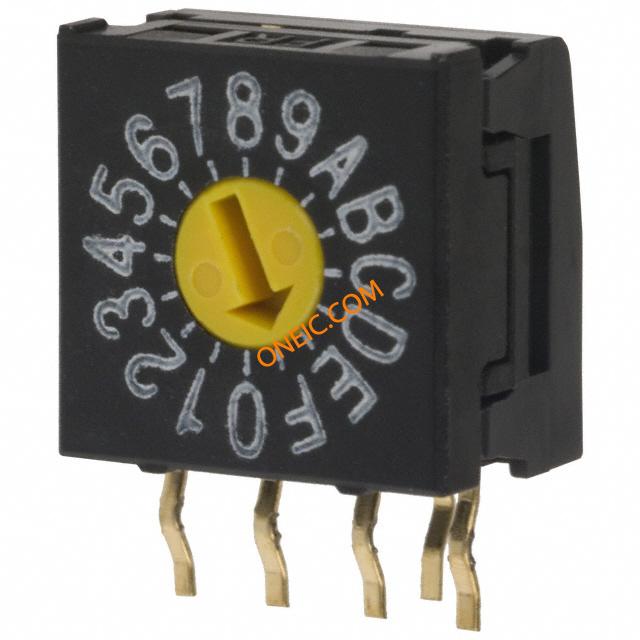

FR01FC16H-S
| Manufacturer | |
| Description | Coded Rotary Switches 10MM HEXADECIMAL 16P COMPLEMENT CODED R/A Switch DIP SP16T 16 Flush Screwdriver 0.1A 5VDC PC Pins 625Cycles Thru-Hole Tube SW ROTARY DIP HEX YEL RA 5V SWITCH, ROTARY, 1POLE, 16POS, 0.1A, 5V Through-hole,ScrewdriverActuated,ComplementCoded,Hexadecimal,RightAngle, |
| Category |
对参数有疑问？问 AI 助手
Business
| Part # Aliases | FR01-FC16H-ST | Product Category | Coded Rotary Switches |
| Standard Package | 50 | Factory Pack Quantity | 50 |
Compliance
| RoHS | RoHS Compliant | EU RoHS | Compliant |
| Tariff No | 85365015 | ||
Electrical
| Circuit | Hexadecimal Complement | Voltage Rating | 5 |
| Number of Poles | :1 | Dielectric Strength | 250 Volts |
| Current Rating (Max) | 0.1@5VDC | Current - Max/Contact | :100mA |
| Contact Rating @ Voltage | 100 mA at 5 V | Voltage - Supply (Vcc/Vdd) | :5V |
Mechanical

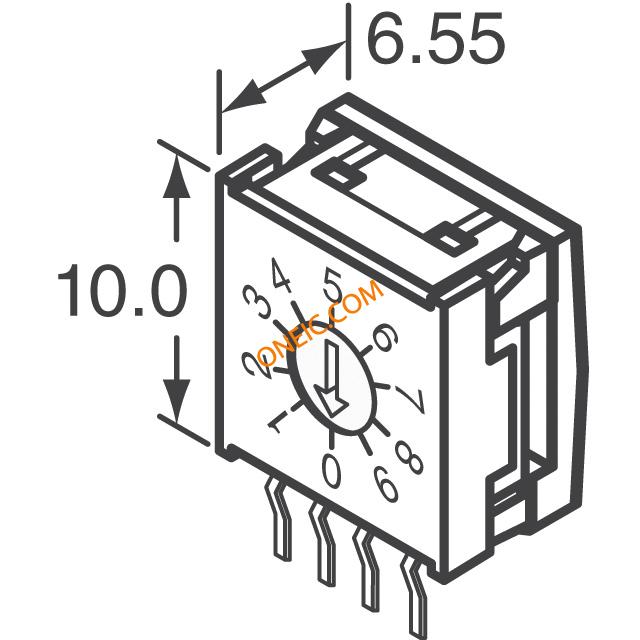

| Seal | No | Depth | 6.55 |
| Height | 10 | Weight | 0 |
| Packaging | Tube | Orientation | Side Actuated |
| Actuator Type | Screwdriver | Mounting Type | Through Hole |
| Terminal Type | PC Pins | Actuator Level | Flush |
| Contact Finish | Gold | Contact Material | Copper Alloy |
| Length - Overall | 10 | Termination Style | Right Angle PC |
| Actuator Style/Size | Flush Screwdriver | Number of Positions | 16 |
| Switch Actuation Level | SP16T | ||
Product Info
| Washable | No | Electrical Life | 625 |
| Outputs and Type | Complement | ||
Environmental
| Mechanical Life | 625 | Operating Temperature | 85 |
