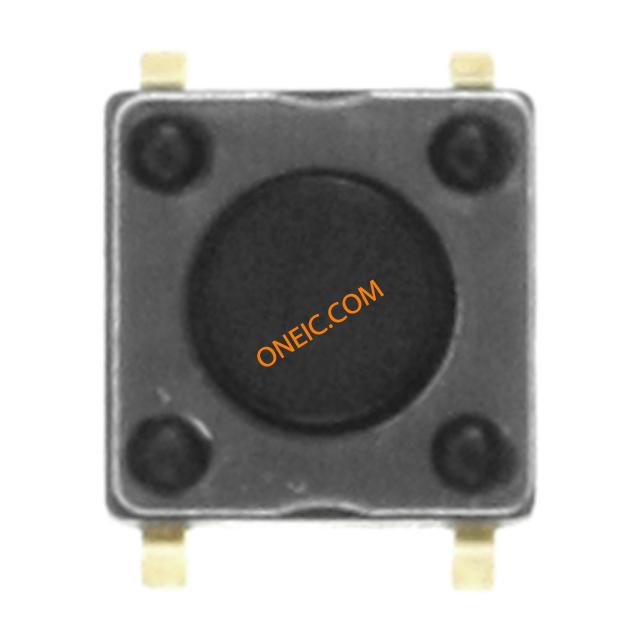

点击放大查看
HP0215AFKP4
| Manufacturer | |
| Description | Tactile Switches SPST OFF (ON) SWITCH TACTILE SPST-NO 0.4VA 28V |
| Category |
对参数有疑问？问 AI 助手
Business
| Product Category | Tactile Switches | Standard Package | 1 |
Compliance
| RoHS | RoHS Compliant | ||
Electrical
| Circuit | SPST-NO | Power - Rated | 3 VA |
| Voltage Rating | 28 V | Switch Function | OFF - (ON) |
| Contact Rating @ Voltage | 0.4VA @ 28VAC/DC | ||
Mechanical
| Color | Black | Outline | 6.20mm x 6.20mm |
| Packaging | Bulk | Contact Form | SPST |
| Travel Range | 0.2 mm | Actuator Type | Round |
| Mounting Type | Through Hole | Switch Travel | 0.20mm |
| Connector Type | No | Contact Finish | Gold |
| Mounting Style | Through Hole | Operating Force | 1.6 N |
| Actuator Material | Polyamide (PA), Nylon, Glass Filled | Termination Style | Straight PC |
| Actuator Orientation | Top Actuated | Height - Seated (Max) | 0.8 mm |
| Actuator Height off PCB, Vertical | 4.30mm | ||
Product Info
| Series | HP | Features | Sealed - Flux Protection |
| Illumination | Not Illuminated | ||
Environmental
| Mechanical Life | 500,000 Cycles | Operating Temperature | - 20 C to + 70 C |
