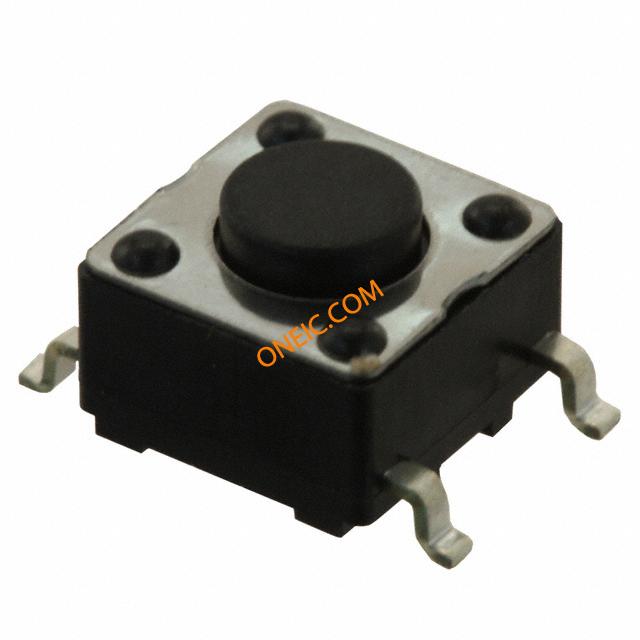

HP0315AFKP2-R
| Manufacturer | |
| Description | Tactile Switches SPST OFF-(ON) 3VA BLK FLAT BUTTON SMT Switch Tactile OFF (ON) SPST Flat Button Gull Wing 0.125A 28VAC 28VDC 3VA 500000Cycles 1.6N SMD T/R SWITCH TACTILE SPST-NO 3VA 28V SWITCH, TACTILE, 0.125A, 28VDC, SOLDER Switch,tactile;SPSTOff(On);3VA28VDC;SMTGullWings;FlatButton,Black |
| Category |
对参数有疑问？问 AI 助手
Business
| Other Names | 360-2595-1 | Part # Aliases | HP03-15AFKP2-TP |
| Product Category | Tactile Switches | Standard Package | 1,000 |
Compliance
| RoHS | RoHS Compliant | EU RoHS | Compliant |
| Tariff No | 85365019 | ||
Electrical
| Circuit | SPST-NO | Power - Rated | 3 VA |
| Voltage Rating | 28 V | Switch Function | OFF - (ON) |
| Current Rating (Max) | 0.125@28VAC 28VDC | Current - Max/Contact | :125mA |
| Voltage - Input (Min) | 28 | Switch Function/Rating | OFF (ON) |
| Contact Rating @ Voltage | 3VA @ 28VDC | Connector - Voltage Input | :Solder |
| Voltage - Supply (Vcc/Vdd) | :28V | ||
Mechanical
| Seal | No | Color | Black |
| Depth | 9 | Height | 4.4 |
| Weight | 0 | Outline | 6.20mm x 6.20mm |
| Packaging | Reel | Contact Form | SPST |
| Actuator Type | Round | Mounting Type | Surface Mount |
| Switch Travel | 0.20mm | Terminal Type | Gull Wing |
| Actuator Color | Black | Connector Type | No |
| Contact Finish | Silver | Mounting Style | SMD/SMT |
| Actuator Length | 0.8 | Operating Force | 1.6 N |
| Contact Material | Stainless Steel | Length - Overall | 6.2 |
| Actuator Material | Polyamide (PA), Nylon, Glass Filled | Termination Style | Gull Wing for Upright Mount |
| Actuator Style/Size | Flat Button | Actuator Orientation | Top Actuated |
| Height - Seated (Max) | 0.8 mm | Switch Actuation Level | SPST |
| Material - Housing & Prism | (Glass Fiber/Polyamide)/N/A | Actuator Height off PCB, Vertical | 4.40mm |
Product Info
| Series | HP | Features | Sealed - Flux Protection |
| Illumination | Not Illuminated | Electrical Life | 500000 |
Environmental
| Mechanical Life | 500,000 Cycles | Operating Temperature | - 20 C to + 70 C |
