点击放大查看

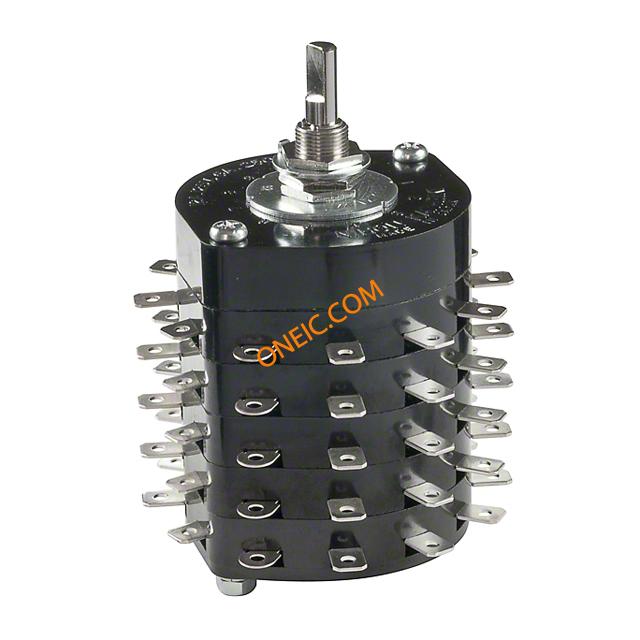

HS16-5N
| Manufacturer | |
| Description | Rotary Switches 12 AMP 5P 2-11 POS SW ROTARY SP 12A NONSHORT 5DECK SWITCH, ROTARY, 5POLE, 11POS, PANEL SWITCH,ROTARY,QCSOLDERLUGTERMINAL,12A@125VAC,6A@250VAC |
| Category |
对参数有疑问？问 AI 助手
Business
| Product Category | Rotary Switches | Standard Package | 1 |
Compliance
| RoHS | RoHS Compliant By Exemption | Tariff No | 85365080 |
Electrical
| Voltage - Core | :250V | Voltage Rating | 125 VAC, 250 VAC |
| Number of Poles | :5 | Dielectric Strength | 1500VAC |
| Current Rating (Max) | 12 A, 6 A | Current - Max/Contact | :12A |
| Contact Rating @ Voltage | 12A @ 125VAC | ||
Mechanical
| Weight | 0 | Body Finish | Standard |
| Orientation | Vertical | Termination | SolderLugs |
| Contact Type | Non Shorting | Actuator Type | Shaft, D-Flat |
| Contact Shape | 30 deg | Mounting Type | Panel |
| Angle of Throw | 30° | Mounting Style | Panel |
| Termination Style | Solder Lug | Number of Positions | 2 to 11 |
| Mounting Hole Diameter | 0.118In. | Number of Poles per Deck | 5 |
Product Info
| Type | Rotary | Index Stops | Adjustable |
| Number of Decks | 5 | Circuit per Deck | SP11T |
Documents & Media
PDF Document
PDF Document
