ISC01P
| Manufacturer | |
| Description | OLED Module without Touchscreen 52x36Pixels Serial (SPI) 8-Pin DISPLAY OLED 52RGB X 36 OLED Displays & Accessories OLED SmartDisplay 52 X 36 full color OLED Module without Touchscreen 52x36Pixels 8-Pin SmartSwitch,OLEDDisplay52RGBx36 |
| Category |
对参数有疑问？问 AI 助手
Business
| Product | OLED Display Modules | Tradename | SmartSwitch |
| Other Names | 360-2342 | Part # Aliases | IS-C01P |
| Product Category | OLED Displays & Accessories | Standard Package | 1 |
Compliance
| RoHS | Lead free / RoHS Compliant | EU RoHS | Compliant |
Electrical
| Backlight | LED - Red/Green/Blue | Interface | Serial (SPI) |
| Resolution | 52 x 36 | Display Type | OLED |
| Response Time | 30000(Max) | Viewing Angle | 180 deg |
| Voltage - Supply | 2.8 V | LED Forward Current | LED - Red/Green/Blue |
| Current - Average Rectified (Io) | 2.4 mA | ||
Mechanical
| Width | 17.8 | Text Color | Gray |
| Mounting Type | Through Hole | Connector Usage | SPI |
| Background Color | Red/Green/Blue | Length - Overall | 17.2 |
| Size / Dimension | 12.90mm L x 9.90mm W | Illumination Color | RGB |
| Number of Positions | 8 | Shell Size - Insert | 9.9 |
Product Info
| Series | SmartDisplay™ | Dot Size | 0.21mm x 0.22mm |
| Dot Pixels | 52 x 36 | Pixel Size | 52 x 36 |
| Active Area | 12.9x9.9 | Touchscreen | No |
| Display Mode | Passive | Pixel Format | 52x36 |
| Viewing Area | 12.90mm L x 9.90mm W | Electrical Life | 60000 |
| Other Specifications | 100:1(Min) | Printed Circuit Board | 8 |
Environmental
| Operating Temperature | + 70 C | Luminous Flux @ Current/Temperature | 100 |
Documents & Media
PDF Document
PDF Document
PDF Document
PDF Document
Similar Parts
IS-L02P1-C
NKK Switches
Switch Development Tools Logic Board with 2 OLED Display Sockets BOARD LOGIC 2OLED DISPLAY SOCKET
$218.6880
Details
IS-CHPMP
NKK Switches
Power Management IC Development Tools Charge pump Input 3.3V Out 16V PROGRAMMABLE SWITCH AND DISPLA BOARD DC/DC CONV OLED DRIVER ChargePumpfoOLEDSmartSwitchProducts
$65.0250
Details
IS-DEV KIT-7D
NKK Switches
Switch Development Tools 2 OLED SmrtDspl Lgc Bd,cntlr,pwr sup cbl Controls Two OLED SmartDisplays KIT DEV FOR OLED DISPLAY
$2428.0800
Details

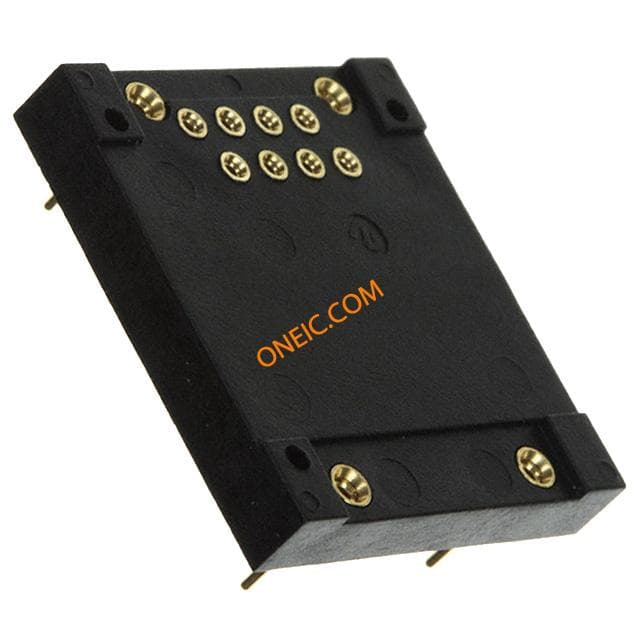

AT9704-085M
