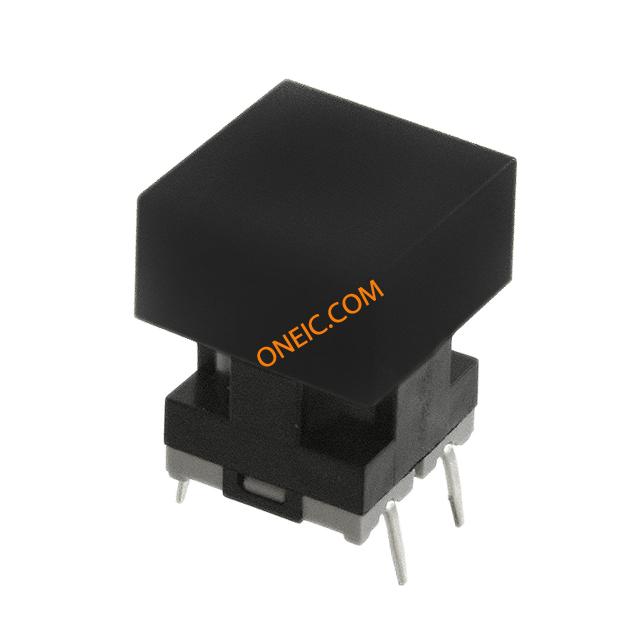

JB15HAP-2A
| Manufacturer | |
| Description | Tactile Switches EXTND BLACK MOMENTRY Switch Tactile OFF (ON) SPST Square Button PC Pins 0.125A 24VDC 1000000Cycles 2.65N Thru-Hole SWITCH TACT SPST-NO 0.125A 24V SPSTOFF(ON),HighforActuatorsF,K,&A,Extended(notforRightAn,Straigh |
| Category |
对参数有疑问？问 AI 助手
Business
| Product Category | Tactile Switches | Standard Package | 1 |
Compliance
| RoHS | RoHS Compliant | EU RoHS | Compliant |
Electrical
| Circuit | SPST-NO | Voltage Rating | 24 V |
| Switch Function | OFF - (ON) | Current Rating (Max) | 125 mA |
| Switch Function/Rating | OFF (ON) | Contact Rating @ Voltage | 0.125A @ 24VDC |
Mechanical
| Seal | Nitrile Butadiene Rubber/Molded-I... | Color | Black |
| Depth | 12 | Height | 14.7 |
| Outline | 10.00mm x 10.00mm | Packaging | Bulk |
| Contact Form | SPST | Travel Range | 0.3 mm |
| Actuator Type | Round | Mounting Type | Through Hole |
| Switch Travel | 0.30mm | Terminal Type | PC Pins |
| Actuator Color | Black | Connector Type | No |
| Contact Finish | Silver | Mounting Style | Through Hole |
| Actuator Length | 1 | Operating Force | 2.65 N |
| Contact Material | Stainless Steel | Length - Overall | 12 |
| Actuator Material | Polybutylene Terephthalate (PBT), Glass Filled | Termination Style | Straight PC |
| Actuator Style/Size | Square Button | Actuator Orientation | Top Actuated |
| Height - Seated (Max) | 0.7 mm | Switch Actuation Level | SPST |
| Material - Housing & Prism | (Glass Fiber/Polybutylene Terepht... | Actuator Height off PCB, Vertical | 14.70mm |
Product Info
| Type | Low Profile | Series | JB |
| Features | Process Sealed | Illumination | Not Illuminated |
| Electrical Life | 1000000 | ||
Environmental
| Mechanical Life | 1,000,000 Cycles | Ingress Protection | IP67 - Dust Tight, Waterproof |
| Operating Temperature | - 25 C to + 70 C | ||
