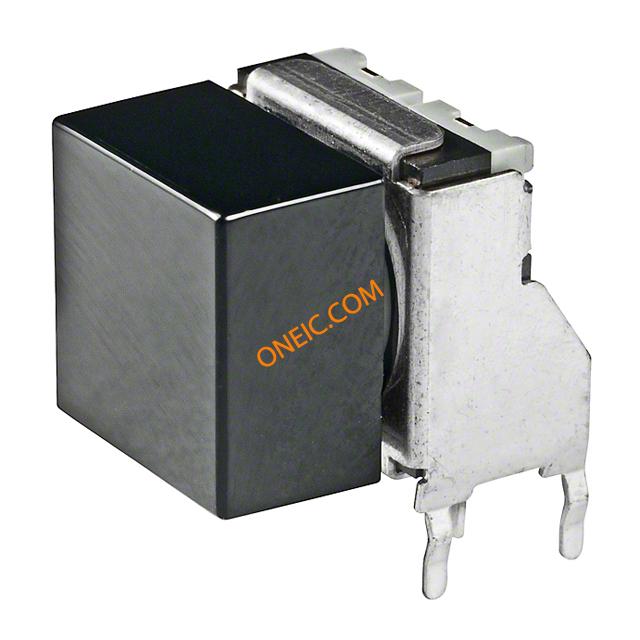

JB15HKH-6A
| Manufacturer | |
| Description | Tactile Switches SPST OFF-(ON) R/A FLAT CAP BLACK SWITCH TACT SPST-NO 0.125A 24V SPSTOFF(ON),HighforActuatorsF,K,&A,Short,RightAnglePC,Flat,Black |
| Category |
对参数有疑问？问 AI 助手
Business
| Product Category | Tactile Switches | Standard Package | 1 |
Compliance
| RoHS | RoHS Compliant | ||
Electrical
| Circuit | SPST-NO | Voltage Rating | 24 V |
| Switch Function | OFF - (ON) | Current Rating (Max) | 125 mA |
| Contact Rating @ Voltage | 0.125A @ 24VDC | ||
Mechanical
| Color | Black | Outline | 10.80mm x 10.80mm |
| Packaging | Bulk | Contact Form | SPST |
| Travel Range | 0.3 mm | Actuator Type | Round |
| Mounting Type | Through Hole, Right Angle | Switch Travel | 0.30mm |
| Connector Type | No | Contact Finish | Silver |
| Mounting Style | Through Hole | Operating Force | 2.65 N |
| Actuator Material | Polyacetal | Termination Style | Right Angle PC |
| Actuator Orientation | Side Actuated | Height - Seated (Max) | 7 mm |
| Actuator Height off PCB, Vertical | 11.20mm | ||
Product Info
| Series | JB | Features | Process Sealed |
| Illumination | Not Illuminated | ||
Environmental
| Mechanical Life | 1,000,000 Cycles | Ingress Protection | IP67 - Dust Tight, Waterproof |
| Operating Temperature | - 25 C to + 70 C | ||
