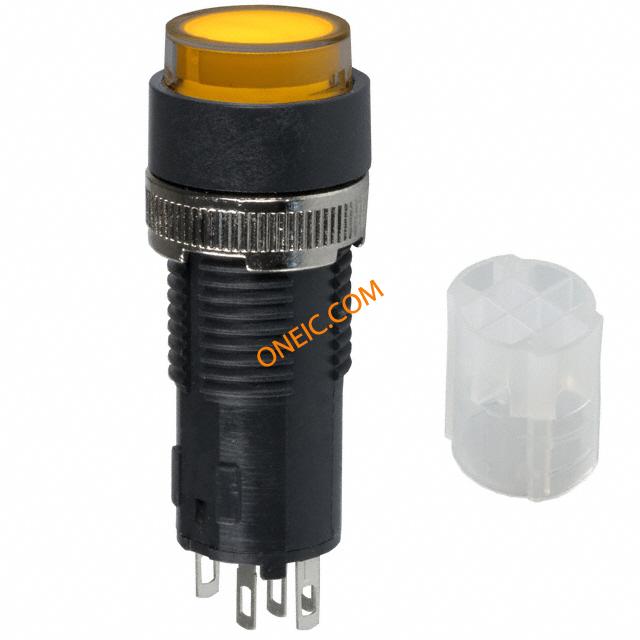

KB15CKW01-5D-JD
| Manufacturer | |
| Description | Pushbutton Switches SPDT ON-(ON) RND AMB SWITCH PUSHBUTTON SPDT 1A 125V SWITCH, PB, ILLUM, SPDT, 1A, 250V Switch,pushbtn;Rnd;SPDT,Mom;SldrLugs;1A/125VAC;AmberLED;12.3mmmnt |
| Category |
对参数有疑问？问 AI 助手
Business
| Standard Package | 10 | ||
Compliance
| RoHS | RoHS Compliant Part | Tariff No | 85365080 |
Electrical
| Circuit | SPDT | Operation | On(On) |
| Voltage Rating | 125V | Switch Function | On-Mom |
| LED Forward Current | 20mA | Current Rating (Max) | 1A (AC/DC) |
| Current - Max/Contact | :1A | Switch Function/Rating | :On-(On) |
| Connector - Voltage Input | :Solder | Voltage - Supply (Vcc/Vdd) | :30V |
| Illumination Voltage (Nominal) | 2 VDC | Voltage - Rated AC (Phase to Ground/Neutral) | :250V |
Mechanical
| Color | Translucent | Weight | 0 |
| Packaging | Bulk | Lens Color | Clearcap |
| Termination | SolderLugs | Contact Form | SPDT |
| Actuator Type | Round, Button | Mounting Type | Panel Mount, Front |
| Mounting Style | Panel | Termination Style | Solder Lug |
| Actuator Style/Size | :Round | Color - Actuator/Cap | Clear (Amber Filter/Diffuser) |
| Mounting Hole Diameter | 12.3mm | Contact Layout, Typical | :SPDT |

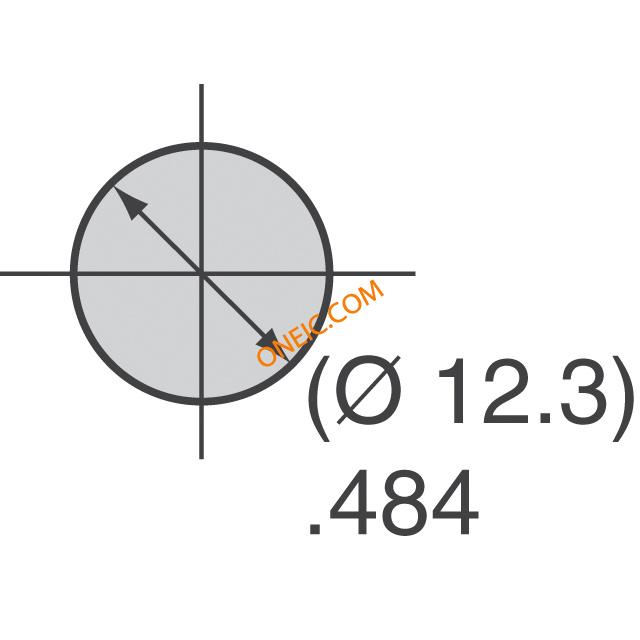

| Panel Cutout Dimensions | Circular - 12.30mm Dia | Illumination Type, Color | LED, Amber |
Product Info
| Type | Standard, Illuminated | Electrical Life | 50,000 Cycles |
Environmental
| Mechanical Life | 100,000 Cycles | Operating Temperature | -25°C ~ 50°C |
