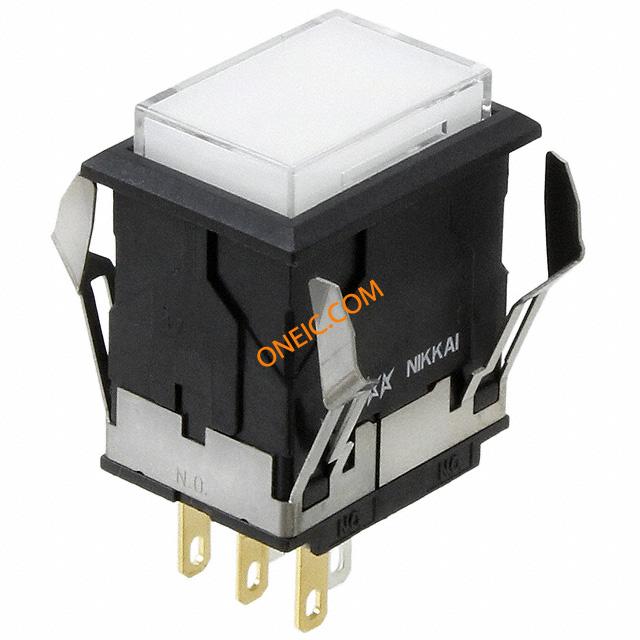

LB15RKG01-6G-JB
| Manufacturer | |
| Description | Switch Push Button ON (ON) SPDT Rectangular Button 0.1A 28VAC 28VDC 0.4VA Momentary Contact Quick Connect/Solder Lug Panel Mount SWITCH PUSH SPDT 0.4VA 28V Pushbutton Switches STD SIZE PUSHBUTTON ILLUMINATED/SNAP-IN Switch Push Button ON (ON) SPDT Rectangular Button 0.1A 28VAC 28VDC 0.4VA Momentary Contact Quick Connect/Sold Switch,Pushbutton,SPDT,ON-(ON),Rect,BlueLED,Clear |
| Category |
Business
| Other Names | 360-2950 | Standard Package | 1 |
Compliance
| RoHS | Lead free / RoHS Compliant | EU RoHS | Compliant |
| Material Flammability Rating | UL 94 V-0 | ||
Electrical
| Circuit | SPDT | Optic Size | T-1 Bi-pin |
| Power - Rated | 0.4 VA | Voltage Rating | 28V |
| Switch Function | On-Mom | Voltage - Rated AC | 28V VAC |
| Current Rating (Max) | 0.4VA (AC/DC) | Voltage - Input (Min) | 28 |
| Switch Function/Rating | ON (ON) | Voltage - DC Spark Over (Nom) | 28V VDC |
| Illumination Voltage (Nominal) | 3.6 VDC | ||
Mechanical
| Height | 35 mm | Packaging | Tray |
| Contact Form | SPDT | Actuator Type | Rectangular, Button |
| Mounting Type | Panel Mount | Terminal Type | Quick Connect/Solder Lug |
| Contact Finish | Gold | Mounting Style | Panel |
| Contact Material | Silver Alloy|Copper | Housing Material | Polyamide, Glass Fiber Reinforced |
| Length - Overall | 24 mm | Termination Style | Solder, Quick Connect - 0.110" (2.8mm) |
| Illumination Color | Blue | Actuator Style/Size | Rectangular Button |
| Color - Actuator/Cap | Clear (White Filter/Diffuser) | Switch Actuation Level | SPDT |
| Panel Cutout Dimensions | Rectangular - 22.40mm x 16.20mm | Illumination Type, Color | LED |
| Material - Housing & Prism | Liquid Crystal Polymer/(Glass Fib... | ||
Product Info
| Type | Standard, Illuminated | Series | LB |
| Function | Momentary Contact | Illumination | LED |
| Electrical Life | 100,000 Cycles | ||
Environmental
| Mechanical Life | 1,000,000 Cycles | Operating Temperature | -25°C ~ 50°C |
| Operating Temperature - Junction | 50C | ||
