LB15RKW01-28-JB
| Manufacturer | |
| Description | STD SIZE PUSHBUTTON/ILLUMINATED/ Pushbutton Switches STD SIZE PUSHBUTTON ILLUMINATED/SNAP-IN SWITCH PUSHBUTTON SPDT 3A 125V |
| Category |
对参数有疑问？问 AI 助手
Business
| Standard Package | 1 | ||
Compliance
| RoHS | RoHS Compliant | Material Flammability Rating | UL 94 V-0 |
Electrical
| Circuit | SPDT | Optic Size | T-1 Bi-pin |
| Voltage Rating | 250 V | Switch Function | ON - (ON) |
| Current Rating (Max) | 3 A | Illumination Voltage (Nominal) | 28 VAC |
Mechanical
| Packaging | Bulk | Contact Form | SPDT |
| Actuator Type | Rectangular | Mounting Type | Snap In |
| Contact Finish | Silver | Mounting Style | Panel |
| Housing Material | Polyamide, Glass Fiber Reinforced | Termination Style | Solder Lug |
| Illumination Color | Clear | Color - Actuator/Cap | Clear (White Filter/Diffuser) |
| Panel Cutout Dimensions | Rectangular - 22.40mm x 16.20mm | Illumination Type, Color | Incandescent, White |
Product Info
| Type | Standard, Illuminated | Series | * |
| Illumination | LED | Electrical Life | 100,000 Cycles |
Environmental
| Mechanical Life | 1,000,000 Cycles | Operating Temperature | -25°C ~ 50°C |
Documents & Media
PDF Document
PDF Document
Similar Parts
AT711
NKK Switches
Switch Accessories SP PCB ADAPTOR LB Switch Access Single Pole Straight PC Adapter SOCKET PCB TYPE FOR LB SERIES PC ADAPTOR, PUSHBUTTON SWITCH Switch,Accy;PCBtoplug-inadaptor;Straightpintermsw;SinglepoleLBseries
$16.3200
Details

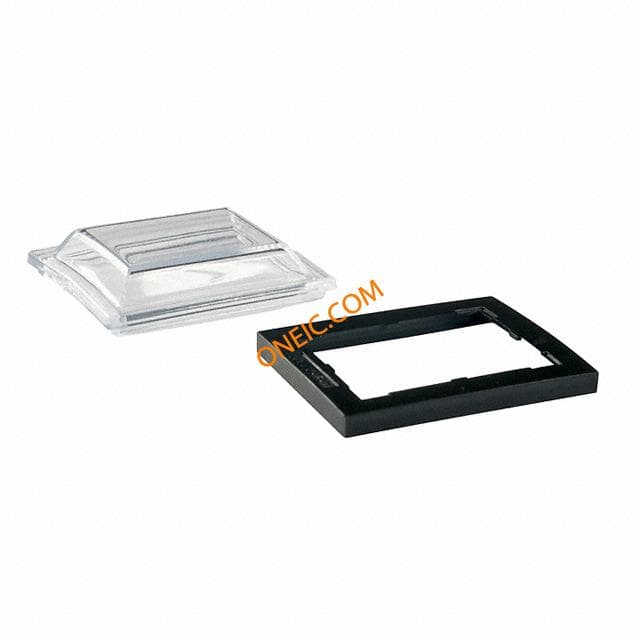

AT4011
