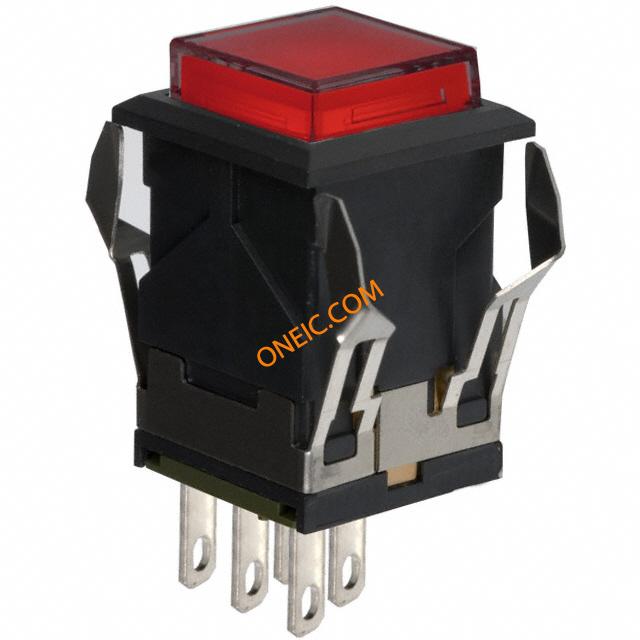

LB15SKW01-5C-JC

Manufacturer	NKK Switches
Description	Pushbutton Switches SPDT ON-(ON) RED Switch Push Button ON (ON) SPDT Square Button 3A 250VAC 30VDC Momentary Contact Quick Connect/Solder Lug Panel Mount SWITCH PUSHBUTTON SPDT 3A 125V SWITCH, PB, ILLUM, SPDT, 3A, 250V Switch,pushbtn;Sqr;SPDT,On-(On);3A/125VAC;Sldr/QCtrml;RedLED;ULCSA
Category	SwitchesPushbutton SwitchesPushbutton Switches

对参数有疑问？问 AI 助手

Business

Part # Aliases	LB15SKW01-5C-JC-RO	Product Category	Pushbutton Switches
Standard Package	50

RoHS	Lead free / RoHS Compliant	EU RoHS	Compliant
Tariff No	85365080	Material Flammability Rating	UL 94 V-0

Circuit	SPDT	Operation	On(On)
Optic Size	T-1 1/2 Bi-pin	Voltage Rating	125V
Switch Function	On-Mom	LED Forward Current	20mA
Current Rating (Max)	3A (AC/DC)	Current - Max/Contact	:3A
Voltage - Input (Min)	250	Switch Function/Rating	ON (ON)
Connector - Voltage Input	:Quick Connect, Solder	Voltage - Supply (Vcc/Vdd)	:30V
Illumination Voltage (Nominal)	1.9 VDC	Voltage - Rated AC (Phase to Ground/Neutral)	:250V

Depth	17.8	Height	34
Weight	0	Packaging	Bulk
Lens Color	Clearcapwithredinsert	Termination	Solder/QCTabs
Contact Form	SPDT	Actuator Type	Square, Button
Mounting Type	Panel Mount	Terminal Type	Quick Connect/Solder Lug
Contact Finish	Gold	Mounting Style	Panel
Contact Material	Silver Alloy\|Copper	Housing Material	Polyamide, Glass Fiber Reinforced
Length - Overall	17.8	Termination Style	Solder, Quick Connect - 0.110" (2.8mm)
Illumination Color	Red	Actuator Style/Size	Square Button
Color - Actuator/Cap	Clear (Red Filter/Diffuser)	Mounting Hole Diameter	16.2mmsquared
Switch Actuation Level	SPDT	Contact Layout, Typical	:SPDT
Panel Cutout Dimensions	Square - 16.20mm²	Illumination Type, Color	LED
Material - Housing & Prism	Liquid Crystal Polymer/(Glass Fib...

Seal Rating	Epoxy	Mechanical Life	1,000,000 Cycles
Operating Temperature	-25°C ~ 50°C
