点击放大查看

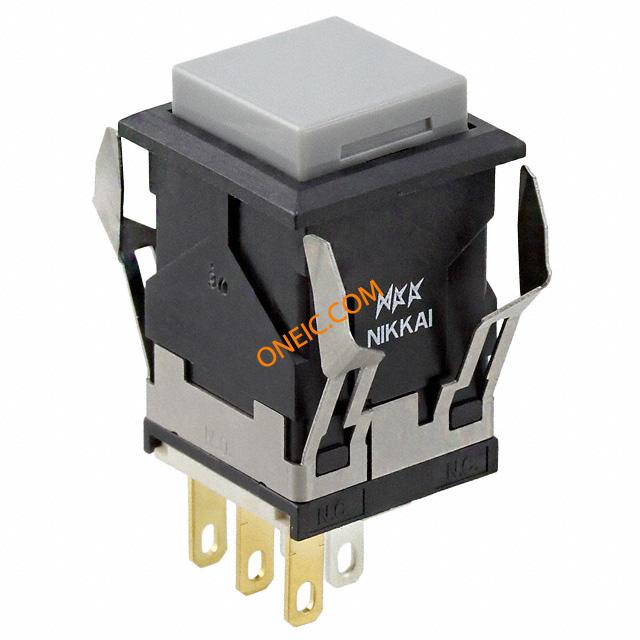

LB16SKG01-H
| Manufacturer | |
| Description | Pushbutton Switches Series LB, Nonillum Snap-In Mount STD SIZE PUSHBUTTON/SNAP-IN SWITCH PUSHBUTTON SPDT 0.4VA 28V SPDTONON,Square,Black,GoldContactsandSolderLug/QuickConnectTermina,G |
| Category |
对参数有疑问？问 AI 助手
Business
| Standard Package | 1 | ||
Compliance
| RoHS | RoHS Compliant By Exemption | Material Flammability Rating | UL 94 V-0 |
Electrical
| Circuit | SPDT | Power - Rated | 0.4 VA |
| Voltage Rating | 28 V | Switch Function | ON - ON |
| Current Rating (Max) | 0.4VA (AC/DC) | ||
Mechanical
| Packaging | Bulk | Contact Form | SPDT |
| Actuator Type | Square | Mounting Type | Snap In |
| Contact Finish | Gold | Mounting Style | Panel |
| Housing Material | Polyamide, Glass Fiber Reinforced | Termination Style | Solder Lug |
| Color - Actuator/Cap | Gray | Panel Cutout Dimensions | Square - 16.20mm² |
Product Info
| Type | Standard | Series | * |
| Electrical Life | 100,000 Cycles | ||
Environmental
| Mechanical Life | 200,000 Cycles | Operating Temperature | -25°C ~ 70°C |
Documents & Media
PDF Document
PDF Document
PDF Document
