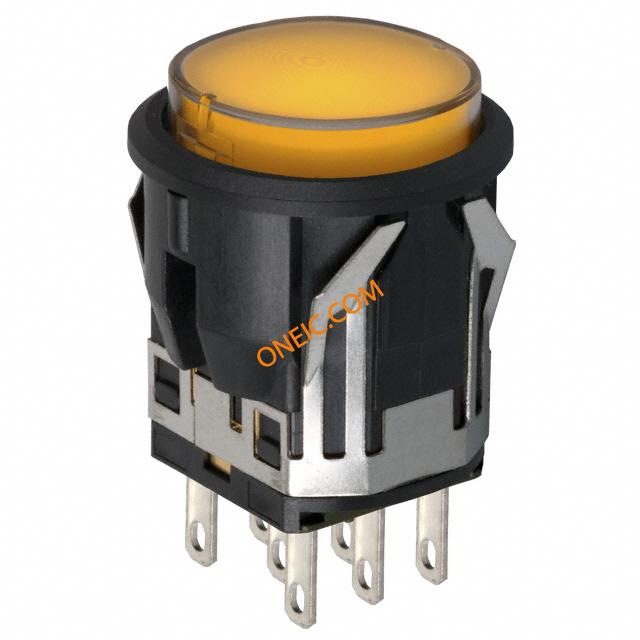

LB25CKW01-5D-JD
| Manufacturer | |
| Description | Pushbutton Switches DPDT ON-(ON) RND AMB SWITCH PUSHBUTTON DPDT 3A 125V SWITCH, PB, ILLUM, DPDT, 3A, 250V Switch,pushbtn;Rnd;DPDT,Mom;3A/125VAC;Sldr/QCtrml;AmberLED;ULCSA |
| Category |
对参数有疑问？问 AI 助手
Business
| Product Category | Pushbutton Switches | Standard Package | 1 |
Compliance
| RoHS | RoHS Compliant By Exemption | Tariff No | 85365080 |
| Material Flammability Rating | UL 94 V-0 | ||
Electrical
| Circuit | DPDT | Operation | On(On) |
| Optic Size | T-1 1/2 Bi-pin | Voltage Rating | 125V |
| Switch Function | On-Mom | LED Forward Current | 20mA |
| Current Rating (Max) | 3A (AC/DC) | Current - Max/Contact | :3A |
| Switch Function/Rating | :On-(On) | Connector - Voltage Input | :Quick Connect, Solder |
| Voltage - Supply (Vcc/Vdd) | :30V | Illumination Voltage (Nominal) | 2 VDC |
| Voltage - Rated AC (Phase to Ground/Neutral) | :250V | ||
Mechanical
| Weight | 0 | Packaging | Bulk |
| Lens Color | Clearcapwithamberinsert | Termination | Solder/QCTabs |
| Contact Form | DPDT | Actuator Type | Round, Button |
| Mounting Type | Panel Mount, Snap-In | Contact Finish | Gold |
| Mounting Style | Panel | Housing Material | Polyamide, Glass Fiber Reinforced |
| Termination Style | Solder, Quick Connect - 0.110" (2.8mm) | Illumination Color | Amber |
| Actuator Style/Size | :Round | Color - Actuator/Cap | Clear (Amber Filter/Diffuser) |
| Mounting Hole Diameter | 22mm | Contact Layout, Typical | :DPDT |

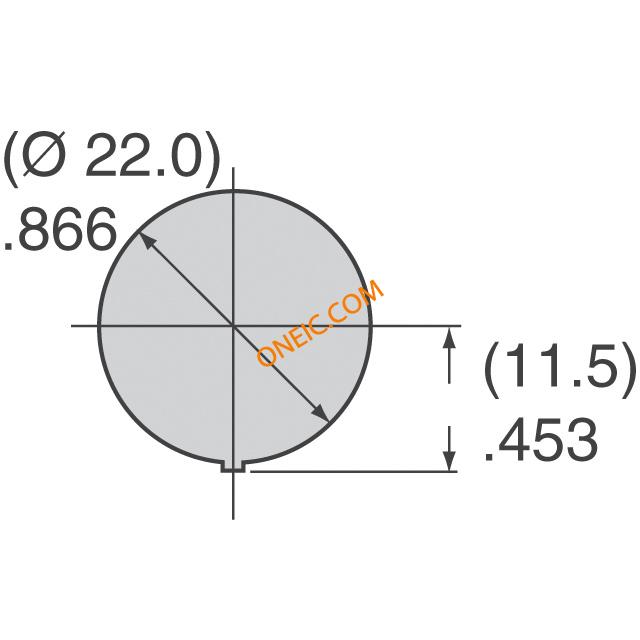

| Panel Cutout Dimensions | Circular - 22.00mm Dia | Illumination Type, Color | LED, Amber |
Product Info
| Type | Standard, Illuminated | Series | LB |
| Illumination | LED | Electrical Life | 100,000 Cycles |
Environmental
| Seal Rating | Epoxy | Mechanical Life | 1,000,000 Cycles |
| Operating Temperature | -25°C ~ 50°C | ||
