LB25SKW01-28-JC
| Manufacturer | |
| Description | STD SIZE PUSHBUTTON/ILLUMINATED/ Pushbutton Switches STD SIZE PUSHBUTTON ILLUMINATED/SNAP-IN SWITCH PUSHBUTTON DPDT 3A 125V |
| Category |
对参数有疑问？问 AI 助手
Business
| Standard Package | 1 | ||
Compliance
| RoHS | RoHS Compliant | Material Flammability Rating | UL 94 V-0 |
Electrical
| Circuit | DPDT | Optic Size | T-1 Bi-pin |
| Voltage Rating | 250 V | Switch Function | ON - (ON) |
| Current Rating (Max) | 3 A | Illumination Voltage (Nominal) | 28 VAC |
Mechanical
| Packaging | Bulk | Contact Form | DPDT |
| Actuator Type | Square | Mounting Type | Snap In |
| Contact Finish | Silver | Mounting Style | Panel |
| Housing Material | Polyamide, Glass Fiber Reinforced | Termination Style | Solder Lug |
| Illumination Color | Clear | Color - Actuator/Cap | Clear (Red Filter/Diffuser) |
| Panel Cutout Dimensions | Square - 16.20mm² | Illumination Type, Color | Incandescent, Red |
Product Info
| Type | Standard, Illuminated | Series | * |
| Illumination | LED | Electrical Life | 100,000 Cycles |
Environmental
| Mechanical Life | 1,000,000 Cycles | Operating Temperature | -25°C ~ 50°C |
Documents & Media
PDF Document
PDF Document
Similar Parts

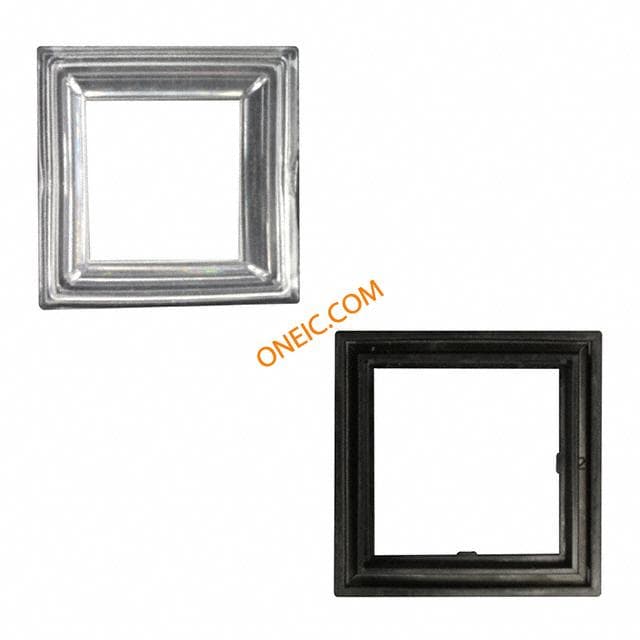

AT4001
