LB26CKW01-28-JC
| Manufacturer | |
| Description | STD SIZE PUSHBUTTON/ILLUMINATED/ Pushbutton Switches 3A @ 125/250V AC 28V DPDT ON-ON ROUND SWITCH PUSHBUTTON DPDT 3A 125V Switch,Pushbutton,Illum,DPDT,On-On,Round,Blk,28V |
| Category |
对参数有疑问？问 AI 助手
Business
| Standard Package | 1 | ||
Compliance
| RoHS | RoHS Compliant | Material Flammability Rating | UL 94 V-0 |
Electrical
| Circuit | DPDT | Voltage Rating | 250 V |
| Switch Function | ON - ON | Current Rating (Max) | 1 A |
| Illumination Voltage (Nominal) | 28 VAC | ||
Mechanical
| Color | Black | Packaging | Bulk |
| Contact Form | DPDT | Actuator Type | Round |
| Mounting Type | Snap In | Contact Finish | Silver |
| Mounting Style | Panel | Housing Material | Polyamide |
| Termination Style | Solder Lug | Color - Actuator/Cap | Clear (Red Filter/Diffuser) |
| Panel Cutout Dimensions | Circular - 22.00mm Dia | Illumination Type, Color | Incandescent, Red |
Product Info
| Type | Standard, Illuminated | Series | * |
| Electrical Life | 100,000 Cycles | ||
Environmental
| Mechanical Life | 200,000 Cycles | NEMA Frame Size | 4, 13 |
| Operating Temperature | -25°C ~ 50°C | ||
Documents & Media
PDF Document
PDF Document
Similar Parts

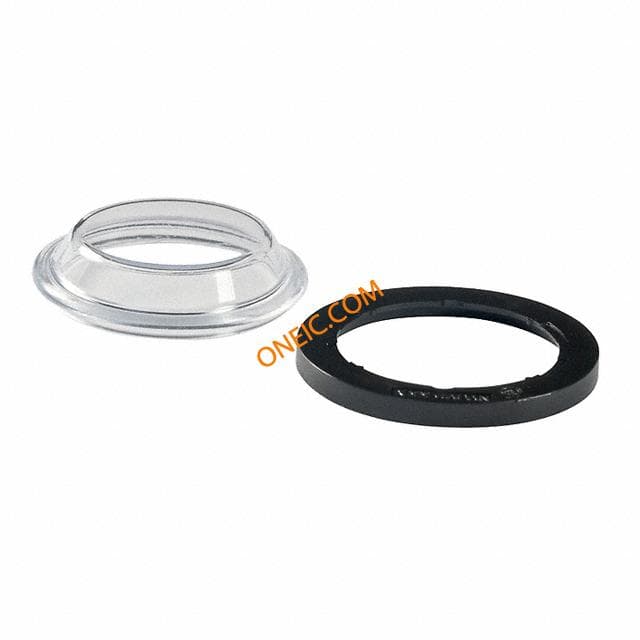

AT4002
NKK Switches
Switch Accessories RND SPLSH CVR LB Switch Access Push Button Switch Round Dust Cover COVER DUST RND POLY FOR LB SER Dust Cover; Guard; Basic lighted pushbutton switches; Round; LB Series LB ILLUM PUSHBUTTON DUST COVER DustCover;Guard;Basiclightedpushbuttonswitches;Round;LBSeries
$8.6768
Details
AT712
NKK Switches
Switch Accessories DP PC ADAPTOR LB Switch Access Double Pole Straight PC Adapter ADAPTER STRAIGHT PC SP LB SERIES PC ADAPTOR, PUSHBUTTON SWITCH Switch,Accy;PCBtoplug-inadaptor;Straightpintermsw;DoublepoleLBseries
$27.4001
Details

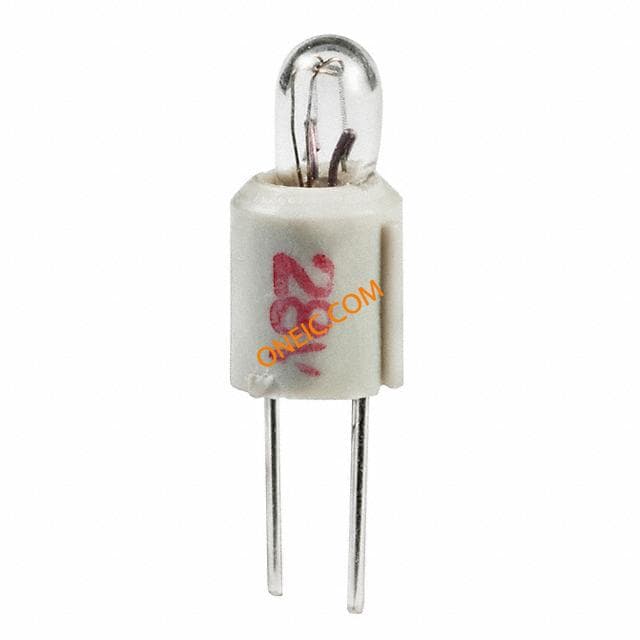

AT607-28V
