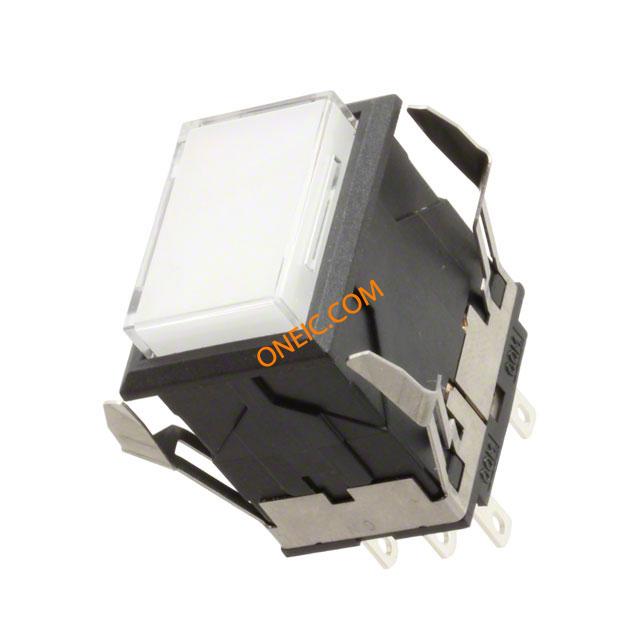

LB26RKW01-6G-JB
| Manufacturer | |
| Description | Pushbutton Switches DPDT ON-ON 3A RECT ILLUM SUPER BLUE Switch Push Button ON ON DPDT Rectangular Button 3A 250VAC 30VDC Alternate Contact Quick Connect/Solder Lug Panel Mount SWITCH PUSHBUTTON DPDT 3A 125V DPDTONON,Rectangular,Black,SilverContactsandSolderLug/QuickConnectTer |
| Category |
Business
| Other Names | 360-2953 | Product Category | Pushbutton Switches |
| Standard Package | 1 | ||
Compliance
| RoHS | Lead free / RoHS Compliant | EU RoHS | Compliant |
| Material Flammability Rating | UL 94 V-0 | ||
Electrical
| Circuit | DPDT | Optic Size | T-1 Bi-pin |
| Voltage Rating | 125V | Switch Function | On-On |
| Voltage - Nominal | 3.6 VDC | Voltage - Rated AC | 125V |
| Current Rating (Max) | 3A (AC/DC) | Voltage - Input (Min) | 250 |
| Switch Function/Rating | ON ON | Illumination Voltage (Nominal) | 3.6 VDC |
Mechanical
| Height | 35 | Packaging | Tray |
| Contact Form | DPDT | Actuator Type | Rectangular, Button |
| Cable Opening | Rectangular - 22.40mm x 16.20mm | Mounting Type | Panel Mount |
| Terminal Type | Quick Connect/Solder Lug | Contact Finish | Gold |
| Mounting Style | Panel | Contact Material | Silver Alloy|Copper |
| Housing Material | Polyamide, Glass Fiber Reinforced | Length - Overall | 24 |
| Termination Style | Solder, Quick Connect - 0.110" (2.8mm) | Illumination Color | Blue |
| Actuator Style/Size | Rectangular Button | Color - Actuator/Cap | Clear (White Filter/Diffuser) |
| Switch Actuation Level | DPDT | Panel Cutout Dimensions | Rectangular - 22.40mm x 16.20mm |
| Illumination Type, Color | LED | Material - Housing & Prism | Liquid Crystal Polymer/(Glass Fib... |
Product Info
| Type | Standard, Illuminated | Series | LB |
| Function | Alternate Contact | Circuit Type | DPDT |
| Illumination | LED | Electrical Life | 100,000 Cycles |
| Output Configuration | Panel Mount, Snap-In | ||
Environmental
| Seal Rating | Epoxy | Mechanical Life | 200,000 Cycles |
| Operating Temperature | -25°C ~ 50°C | ||
