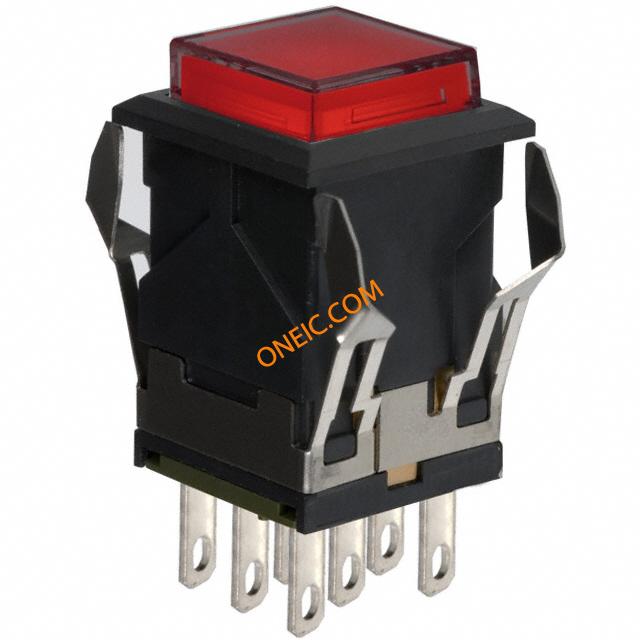

LB26SKW01-5C-JC
| Manufacturer | |
| Description | Pushbutton Switches DPDT ON-ON SQR RED SWITCH PUSHBUTTON DPDT 3A 125V SWITCH, PB, ILLUM, DPDT, 3A, 250V Switch,pushbtn;Sqr;DPDT,On-On;3A/125VAC;Sldr/QCtrml;RedLED;ULCSA |
| Category |
对参数有疑问？问 AI 助手
Business
| Part # Aliases | LB26SKW01-5C-JC-RO | Product Category | Pushbutton Switches |
| Standard Package | 1 | ||
Compliance
| RoHS | RoHS Compliant By Exemption | Tariff No | 85365080 |
| Material Flammability Rating | UL 94 V-0 | ||
Electrical
| Circuit | DPDT | Operation | OnOn |
| Optic Size | T-1 1/2 Bi-pin | Voltage Rating | 125V |
| Switch Function | On-On | LED Forward Current | 20mA |
| Current Rating (Max) | 3A (AC/DC) | Current - Max/Contact | :3A |
| Switch Function/Rating | :On-On | Connector - Voltage Input | :Quick Connect, Solder |
| Voltage - Supply (Vcc/Vdd) | :30V | Illumination Voltage (Nominal) | 1.9 VDC |
| Voltage - Rated AC (Phase to Ground/Neutral) | :250V | ||
Mechanical
| Weight | 0 | Packaging | Bulk |
| Lens Color | Clearcapwithredinsert | Termination | Solder/QCTabs |
| Contact Form | DPDT | Actuator Type | Square, Button |
| Mounting Type | Panel Mount, Snap-In | Contact Finish | Gold |
| Mounting Style | Panel | Housing Material | Polyamide, Glass Fiber Reinforced |
| Termination Style | Solder, Quick Connect - 0.110" (2.8mm) | Illumination Color | Red |
| Actuator Style/Size | :Square | Color - Actuator/Cap | Clear (Red Filter/Diffuser) |
| Mounting Hole Diameter | 16.2mmsquared | Contact Layout, Typical | :DPDT |
| Panel Cutout Dimensions | Square - 16.20mm² | Illumination Type, Color | LED, Red |
Product Info
| Type | Standard, Illuminated | Series | LB |
| Illumination | LED | Electrical Life | 100,000 Cycles |
Environmental
| Seal Rating | Epoxy | Mechanical Life | 200,000 Cycles |
| Operating Temperature | -25°C ~ 50°C | ||
