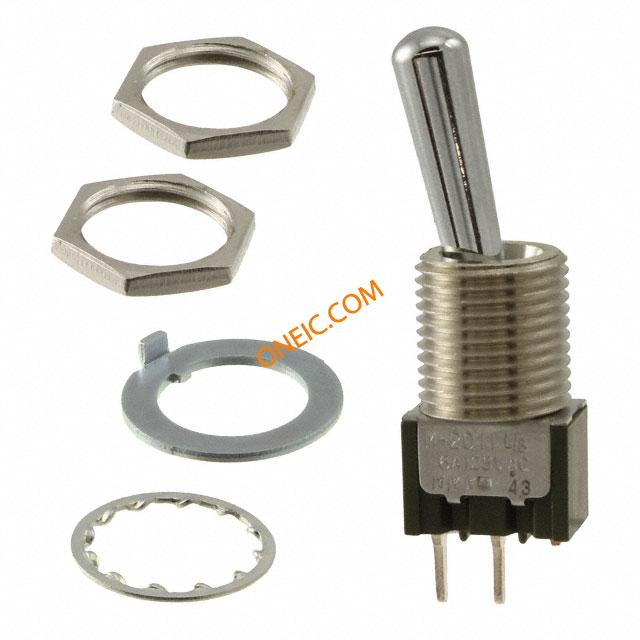

M2011B2B1W03
| Manufacturer | |
| Description | SWITCH TOGGLE SPST 6A 125V Switch Toggle ON None OFF SPST Large Bat Toggle PC Pins 6A 250VAC 30VDC PC Mount with Threads SPSTONNONEOFF,.689InLargeBat,Large.472InThreadedwithKeyway,SilverRa |
| Category |
Business
| Standard Package | 1 | ||
Compliance
| RoHS | Lead free / RoHS Compliant | ||
Electrical
| Circuit | SPST | Voltage Rating | 125V |
| Switch Function | On-Off | Voltage - Rated AC | 250V |
| Current Rating (Max) | 6A (AC), 4A (DC) | Switch Function/Rating | ON None OFF |
| Voltage - DC Spark Over (Nom) | 30V | ||
Mechanical
| Depth | 12 mm | Packaging | Bulk |
| Actuator Type | Standard Round | Mounting Type | Panel Mount |
| Bushing Thread | M12 x 1 | Contact Finish | Silver |
| Actuator Length | 17.50mm | Contact Material | Silver Alloy |
| Length - Overall | 13 mm | Actuator Material | Brass, Chrome Plated |
| Termination Style | PC Pin | Actuator Style/Size | Large Bat Toggle |
| Switch Actuation Level | SPST | Panel Cutout Dimensions | Circular - 12.50mm Dia |
Product Info
| Features | Epoxy Sealed Terminals | Illumination | Non-Illuminated |
| Electrical Life | 25,000 Cycles | ||
Environmental
| Mechanical Life | 100000 | Operating Temperature | -30°C ~ 85°C |
| Operating Temperature - Junction | 85C | ||
Documents & Media
Similar Parts
AT504M
NKK Switches
Switch Accessories KNURLED FACE NUT Nuts Knurled Round 15.2mm 2.5mm Chrome/Brass M12 X 1.75/M12 X 1.5/M12 X 1.25/M12 X 1 NUT KNURLED FACE METRIC M12 FACE NUT, PUSHBUTTON SWITCH Nut;0.098in.Tx0.598in.Dia.;Knurled
AT506M
NKK Switches
Switch Accessories 12MM LOCKING RING Switch Access Locking Ring RING LOCKING FOR M/MB20/SB SER LOCKING RING LOCKINGRING,METRIC,STEELW/ZINCCHROM
AT527M
NKK Switches
Switch Accessories HEX MOUNTING NUT Switch Access Hex Mounting Nut NUT MNT HEX METRIC M/P/S/SB/SK HEX NUT, PUSHBUTTON SWITCH HEXMOUNTINGNUT,STEELW/NICKEL

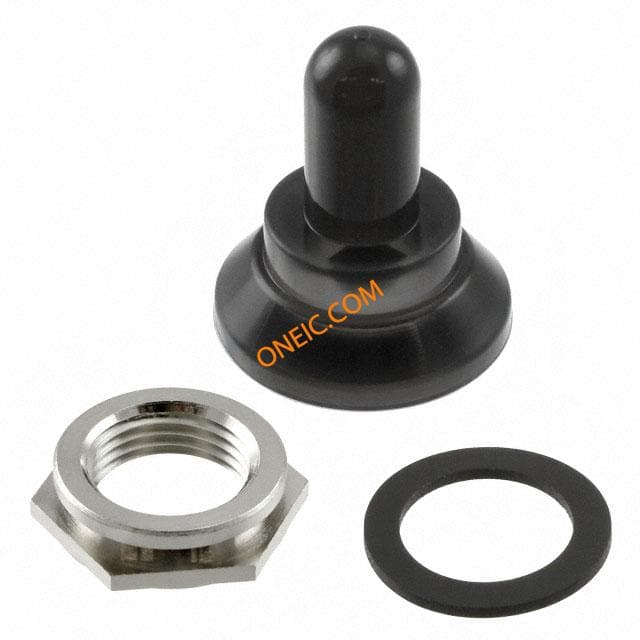

AT4181
