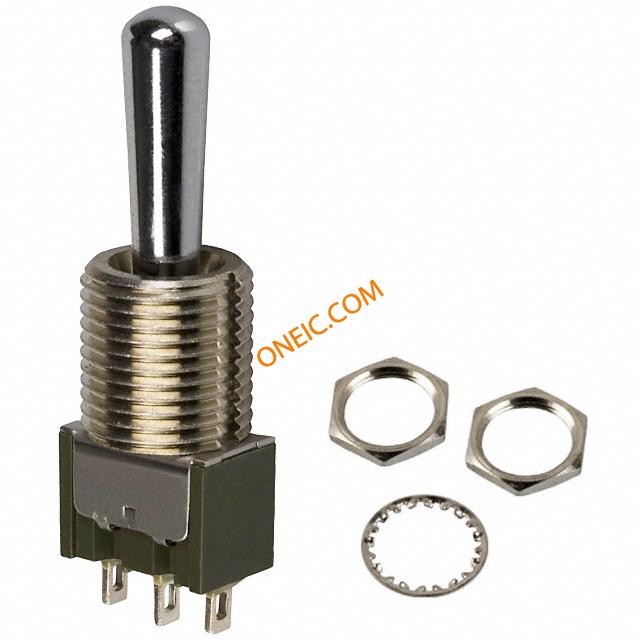

M2012B2B1G01
| Manufacturer | |
| Description | SWITCH TOGGLE SPDT .4VA SLD 5PCS SWITCH TOGGLE SPDT 0.4VA 28V SWITCH, TOGGLE, SPDT, 0.1A, 28VAC SPDTONNONEON,.689InLargeBat,Large.472InThreadedwithKeyway,GoldRated |
| Category |
对参数有疑问？问 AI 助手
Business
| Standard Package | 1 | ||
Compliance
| Tariff No | 85365019 | ||
Electrical
| Circuit | SPDT | Voltage Rating | 28V |
| Switch Function | On-On | Current Rating (Max) | 0.4VA (AC/DC) |
| Current - Max/Contact | :100mA | Switch Function/Rating | :On-None-On |
| Connector - Voltage Input | :Solder | Voltage - Supply (Vcc/Vdd) | :28V |
| Voltage - Rated AC (Phase to Ground/Neutral) | :28V | ||
Mechanical
| Weight | 0 | Packaging | Bulk |
| Actuator Type | Standard Round | Mounting Type | Panel Mount |
| Bushing Thread | M12 x 1 | Actuator Length | 17.50mm |
| Actuator Material | Brass, Chrome Plated | Termination Style | Solder Lug |
| Actuator Style/Size | :Bat | Contact Layout, Typical | :SPDT |
| Panel Cutout Dimensions | Circular - 12.50mm Dia | ||
Product Info
| Features | Epoxy Sealed Terminals | Illumination | Non-Illuminated |
| Electrical Life | 50,000 Cycles | ||
Environmental
| Operating Temperature | -30°C ~ 85°C | ||
