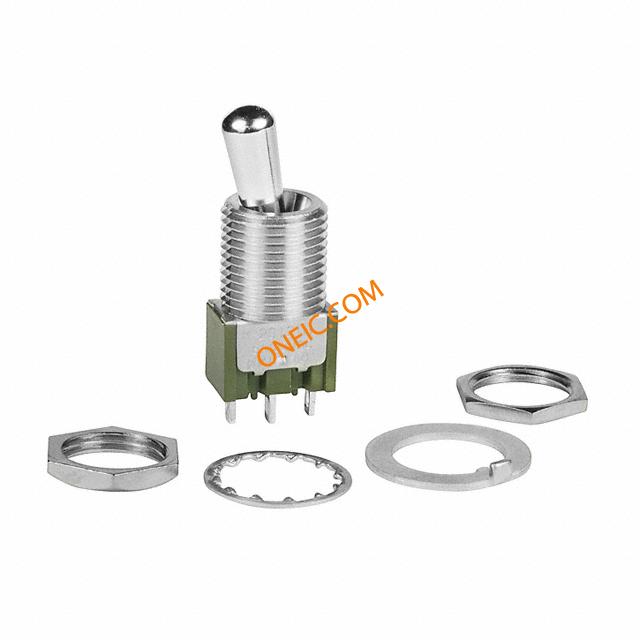

M2012BB1W01
| Manufacturer | |
| Description | Toggle Switches ON-NONE-ON SPDT Switch Toggle ON None ON SPDT Large Bat Toggle Solder Lug 6A 250VAC 30VDC Panel Mount with Threads SWITCH TOGGLE SPDT 6A 125V SWITCH, TOGGLE, SPDT, 6A, 125VAC SWITCH,TOGGLE,SUBMINIATURE,LARGELEVER,BUSHINGW/SOLDERLUGTERMINALS,SPDT |
| Category |
对参数有疑问？问 AI 助手
Business
| Part # Aliases | M-2012L/B | Product Category | Toggle Switches |
| Standard Package | 50 | ||
Compliance
| RoHS | Lead free / RoHS Compliant | EU RoHS | Compliant |
| Tariff No | 85365080 | ||
Electrical
| Circuit | SPDT | Operation | OnNoneOn |
| Voltage Rating | 125V | Number of Poles | 1 |
| Switch Function | On-On | Dielectric Strength | 1500VAC |
| Current Rating (Max) | 6A (AC), 4A (DC) | Current - Max/Contact | :6A |
| Voltage - Input (Min) | 250 | Switch Function/Rating | ON None ON |
| Connector - Voltage Input | :Solder | Voltage - Supply (Vcc/Vdd) | :30V |
| Voltage - Rated AC (Phase to Ground/Neutral) | :125V | ||
Mechanical
| Weight | 0 | Packaging | Bulk |
| Body Finish | Miniature | Termination | SolderLugs |
| Contact Form | SPDT | Actuator Type | Standard Round |
| Mounting Type | Panel Mount with Threads | Terminal Type | Solder Lug |
| Bushing Thread | M12 x 1 | Contact Finish | Silver |
| Mounting Style | Panel | Actuator Length | 11.50mm |
| Contact Material | Silver Alloy | Actuator Material | Brass, Chrome Plated |
| Termination Style | Solder Lug | Actuator Style/Size | Large Bat Toggle |
| Number of Positions | 2 | Bushing, Grommet Type | M12 |
| Mounting Hole Diameter | 0.492In. | Switch Actuation Level | SPDT |
| Contact Layout, Typical | :SPDT | Panel Cutout Dimensions | Circular - 12.50mm Dia |
Product Info
| Type | Miniature | Series | M |
| Features | Epoxy Sealed Terminals | Illumination | Non-Illuminated |
| Electrical Life | 25,000 Cycles | ||
Environmental
| Seal Rating | Sealed | Mechanical Life | 100000 |
| Operating Temperature | -30°C ~ 85°C | ||
