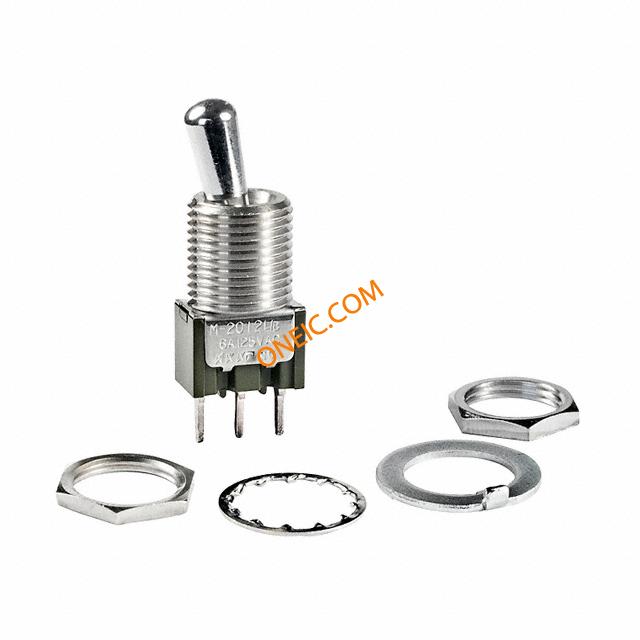

M2012BB1W03
| Manufacturer | |
| Description | SW TOGGLE SPDT THR SILV .250" PC SWITCH TOGGLE SPDT 6A 125V Switch Toggle ON None ON SPDT Large Bat Toggle PC Pins 6A 250VAC 30VDC PC Mount with Threads SWITCH, TOGGLE, SPDT, 6A, 125VAC SPDTONNONEON,.453InLargeBat,Large.472InThreadedwithKeyway,SilverRat |
| Category |
对参数有疑问？问 AI 助手
Business
| Standard Package | 1 | ||
Compliance
| Tariff No | 85365080 | ||
Electrical
| Circuit | SPDT | Voltage Rating | 125V |
| Switch Function | On-On | Voltage - Rated AC | 250V |
| Current Rating (Max) | 6A (AC), 4A (DC) | Current - Max/Contact | :6A |
| Switch Function/Rating | ON None ON | Connector - Voltage Input | :Solder |
| Voltage - Supply (Vcc/Vdd) | :30V | Voltage - DC Spark Over (Nom) | 30V |
| Voltage - Rated AC (Phase to Ground/Neutral) | :125V | ||
Mechanical
| Weight | 0 | Packaging | Bulk |
| Actuator Type | Standard Round | Mounting Type | Panel Mount |
| Bushing Thread | M12 x 1 | Contact Finish | Silver |
| Actuator Length | 11.50mm | Contact Material | Silver Alloy |
| Actuator Material | Brass, Chrome Plated | Termination Style | PC Pin |
| Actuator Style/Size | Large Bat Toggle | Switch Actuation Level | SPDT |
| Contact Layout, Typical | :SPDT | Panel Cutout Dimensions | Circular - 12.50mm Dia |
Product Info
| Features | Epoxy Sealed Terminals | Illumination | Non-Illuminated |
| Electrical Life | 25,000 Cycles | ||
Environmental
| Mechanical Life | 100000 | Operating Temperature | -30°C ~ 85°C |
| Operating Temperature - Junction | 85C | ||
