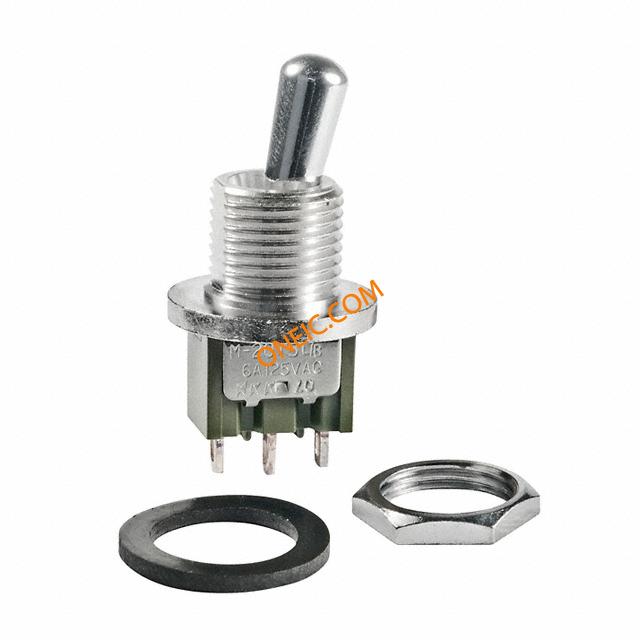

M2015BB3W01
| Manufacturer | |
| Description | SW TOGGLE SPDT THR SILV .250"PC SWITCH TOGGLE SPDT 6A 125V Toggle Switches SPDT ON-NONE-(ON) SWITCH,SPDTONNONE(ON),.453INLBBT |
| Category |
对参数有疑问？问 AI 助手
Business
| Part # Aliases | M-2015L/B-ANR | Product Category | Toggle Switches |
| Standard Package | 1 | ||
Compliance
| RoHS | RoHS Compliant By Exemption | ||
Electrical
| Circuit | SPDT | Voltage Rating | 125V |
| Switch Function | On-Mom | Current Rating (Max) | 6A (AC), 3A (DC) |
Mechanical
| Packaging | Bulk | Contact Form | SPDT |
| Actuator Type | Standard Round | Mounting Type | Panel Mount |
| Bushing Thread | M12 x 1 | Contact Finish | Silver |
| Mounting Style | Through Hole | Actuator Length | 11.50mm |
| Actuator Material | Brass, Chrome Plated | Termination Style | Solder Lug |
| Bushing, Grommet Type | M12 | Panel Cutout Dimensions | Circular - 12.50mm Dia |
Product Info
| Features | Epoxy Sealed Terminals | Illumination | Non-Illuminated |
| Electrical Life | 25,000 Cycles | ||
Environmental
| Seal Rating | Sealed | Ingress Protection | IP67 - Dust Tight, Waterproof |
| Operating Temperature | -30°C ~ 85°C | ||
