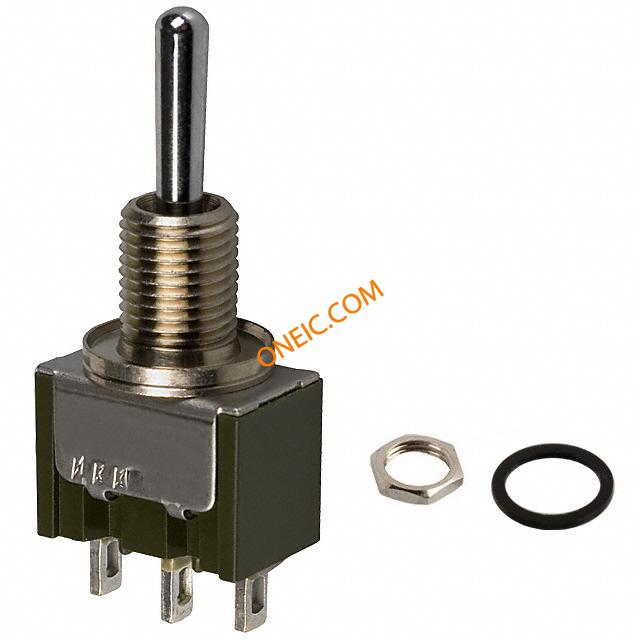

M2018SD3W01
| Manufacturer | |
| Description | Toggle Switches SPDT (ON)OFF(ON) Switch Toggle (ON) OFF (ON) SPDT Small Bat Toggle Solder Lug 6A 250VAC 30VDC Panel Mount with Threads SWITCH TOGGLE SPDT 6A 125V SWITCH, TOGGLE, SPDT, 6A, 125VAC SPDT(ON)OFF(ON),.413InBat,.350InThreadedSplashproofwithááDFlat(Sand |
| Category |
对参数有疑问？问 AI 助手
Business
| Part # Aliases | M-2018NWS1 M2018SD3W01-RO | Product Category | Toggle Switches |
| Standard Package | 100 | ||
Compliance
| RoHS | RoHS Compliant | EU RoHS | Compliant |
| Tariff No | 85365080 | ||
Electrical
| Circuit | SPDT | Voltage Rating | 125 V, 250 V |
| Switch Function | (ON) - OFF - (ON) | Current Rating (Max) | 6 A |
| Current - Max/Contact | :6A | Voltage - Input (Min) | 250 |
| Switch Function/Rating | (ON) OFF (ON) | Connector - Voltage Input | :Solder |
| Voltage - Supply (Vcc/Vdd) | :30V | Voltage - Rated AC (Phase to Ground/Neutral) | :125V |
Mechanical
| Depth | 10 | Height | 33.3 |
| Weight | 0 | Packaging | Bulk |
| Contact Form | SPDT | Actuator Type | Bat |
| Mounting Type | Panel Mount with Threads | Terminal Type | Solder Lug |
| Bushing Thread | 1/4-40 | Contact Finish | Silver |
| Mounting Style | Panel | Actuator Length | 10.50mm |
| Contact Material | Silver Alloy | Length - Overall | 13 |
| Actuator Material | Brass, Chrome Plated | Termination Style | Solder Lug |
| Actuator Style/Size | Small Bat Toggle | Bushing, Grommet Type | 1/4-40 |
| Switch Actuation Level | SPDT | Contact Layout, Typical | :SPDT |
| Panel Cutout Dimensions | Circular - 6.50mm Dia | ||
Product Info
| Type | Miniature | Series | M |
| Features | Epoxy Sealed Terminals | Illumination | Not Illuminated |
| Electrical Life | 25,000 Cycles | ||
Environmental
| Seal Rating | Epoxy | Mechanical Life | 50000 |
| Ingress Protection | IP67 - Dust Tight, Waterproof | Operating Temperature | -30°C ~ 85°C |
