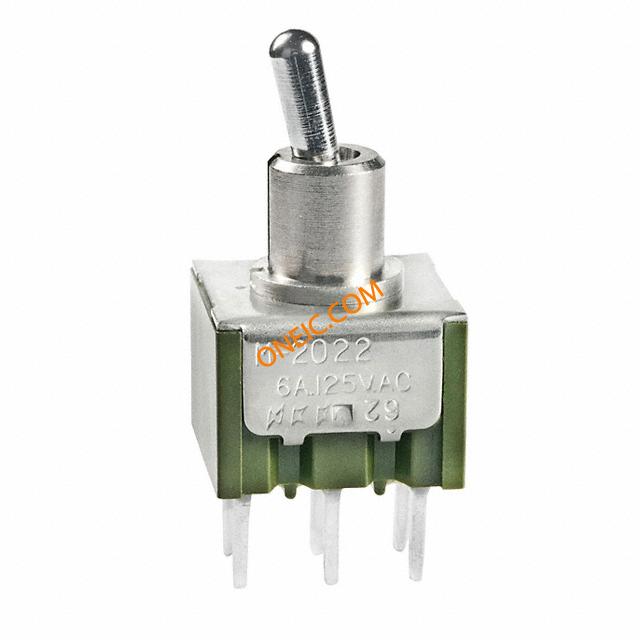

M2022S2A2W03
| Manufacturer | |
| Description | Toggle Switches DPDT ON-NONE-ON PC Switch Toggle ON None ON DPDT Small Bat Toggle PC Pins 6A 250VAC 30VDC PC Mount SWITCH TOGGLE DPDT 6A 125V SWITCH, TOGGLE, DPDT, 6A, 125VAC DPDTONNONEON,.200InBat,.280InSmoothwithKeyway,SilverRated6A@125VA |
| Category |
对参数有疑问？问 AI 助手
Business
| Part # Aliases | M-2022-N393 | Product Category | Toggle Switches |
| Standard Package | 1 | ||
Compliance
| RoHS | RoHS Compliant | EU RoHS | Compliant |
| Tariff No | 85365080 | ||
Electrical
| Circuit | DPDT | Voltage Rating | 125 V, 250 V |
| Switch Function | ON - NONE - ON | Current Rating (Max) | 6 A |
| Current - Max/Contact | :6A | Voltage - Input (Min) | 250 |
| Switch Function/Rating | ON None ON | Connector - Voltage Input | :Solder |
| Voltage - Supply (Vcc/Vdd) | :30V | Voltage - Rated AC (Phase to Ground/Neutral) | :125V |
Mechanical
| Depth | 12.7 | Height | 24.91 |
| Weight | 0 | Packaging | Bulk |
| Contact Form | DPDT | Actuator Type | Bat |
| Mounting Type | PC Mount | Terminal Type | PC Pins |
| Bushing Thread | Unthreaded | Contact Finish | Silver |
| Mounting Style | Panel | Actuator Length | 6.86mm |
| Contact Material | Silver Alloy | Length - Overall | 13 |
| Actuator Material | Brass, Chrome Plated | Termination Style | Solder Terminals |
| Actuator Style/Size | Small Bat Toggle | Switch Actuation Level | DPDT |
| Contact Layout, Typical | :DPDT | ||
Product Info
| Type | Miniature | Series | M |
| Features | Epoxy Sealed Terminals | Illumination | Not Illuminated |
| Electrical Life | 25,000 Cycles | ||
Environmental
| Seal Rating | Epoxy | Mechanical Life | 100000 |
| Operating Temperature | -30°C ~ 85°C | ||
