M2024BB1W01
| Manufacturer | |

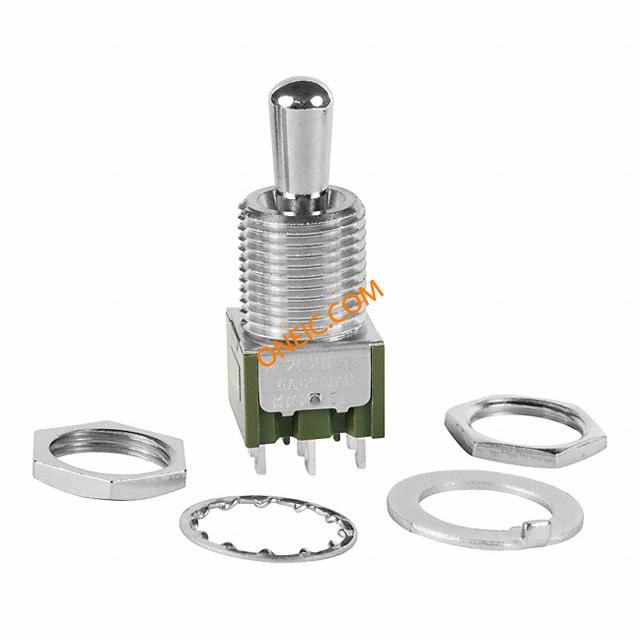

| Description | Switch Toggle ON ON ON SP3T Large Bat Toggle Solder Lug 6A 250VAC 30VDC Panel Mount with Threads SWITCH TOGGLE SP3T 6A 125V SWITCH, TOGGLE, SP3T, 6A, 125VAC SP3TONONON,.453InLargeBat,Large.472InThreadedwithKeyway,SilverRated |
| Category |
Business
| Standard Package | 1 | ||
Compliance
| RoHS | Lead free / RoHS Compliant | EU RoHS | Compliant |
| Tariff No | 85365080 | ||
Electrical
| Circuit | SP3T | Voltage Rating | 125V |
| Switch Function | On-On-On | Voltage - Rated AC | 250V VAC |
| Current Rating (Max) | 6A (AC), 3A (DC) | Current - Max/Contact | :6A |
| Voltage - Input (Min) | 250 | Switch Function/Rating | ON ON ON |
| Connector - Voltage Input | :Solder | Voltage - Supply (Vcc/Vdd) | :30V |
| Voltage - DC Spark Over (Nom) | 30V VDC | Voltage - Rated AC (Phase to Ground/Neutral) | :125V |
Mechanical
| Depth | 12.7 mm | Height | 37.4 mm |
| Weight | 0 | Packaging | Bulk |
| Actuator Type | Standard Round | Mounting Type | Panel Mount with Threads |
| Terminal Type | Solder Lug | Bushing Thread | M12 x 1 |
| Contact Finish | Silver | Actuator Length | 11.50mm |
| Contact Material | Silver Alloy | Length - Overall | 13 mm |
| Actuator Material | Brass, Chrome Plated | Termination Style | Solder Lug |
| Actuator Style/Size | Large Bat Toggle | Switch Actuation Level | SP3T |
| Contact Layout, Typical | :SP3T | Panel Cutout Dimensions | Circular - 12.50mm Dia |
Product Info
| Type | Miniature | Features | Epoxy Sealed Terminals |
| Illumination | Non-Illuminated | Electrical Life | 25,000 Cycles |
Environmental
| Mechanical Life | 100000 | Operating Temperature | -30°C ~ 85°C |
| Operating Temperature - Junction | 85C | ||
Documents & Media
Similar Parts
AT402S
NKK Switches
Switch Accessories SPLASH BOOT 12mm Switch Access Toggle Switch Splashproof Boot BOOT SPLASHPROOF BLK FOR M SER TOGGLE BOOT Switchpart;Toggleboot;M12;SiliconRubberforUseinMSeries
AT504M
NKK Switches

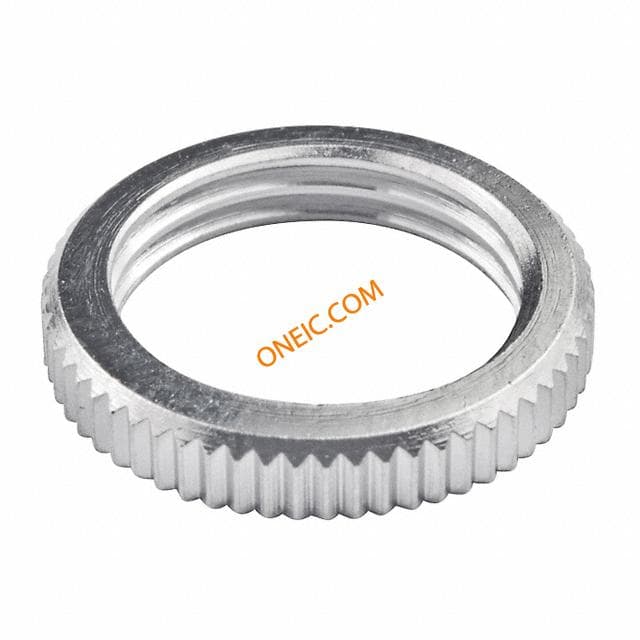

Switch Accessories KNURLED FACE NUT Nuts Knurled Round 15.2mm 2.5mm Chrome/Brass M12 X 1.75/M12 X 1.5/M12 X 1.25/M12 X 1 NUT KNURLED FACE METRIC M12 FACE NUT, PUSHBUTTON SWITCH Nut;0.098in.Tx0.598in.Dia.;Knurled
AT506M
NKK Switches

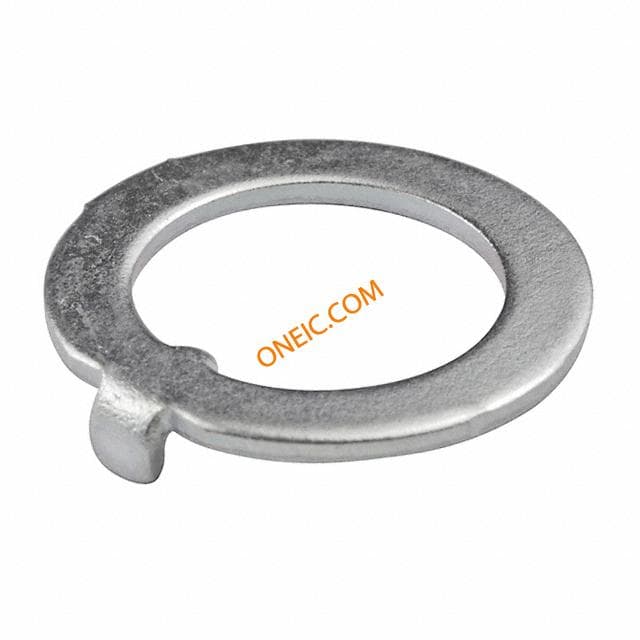

Switch Accessories 12MM LOCKING RING Switch Access Locking Ring RING LOCKING FOR M/MB20/SB SER LOCKING RING LOCKINGRING,METRIC,STEELW/ZINCCHROM
AT527M
NKK Switches

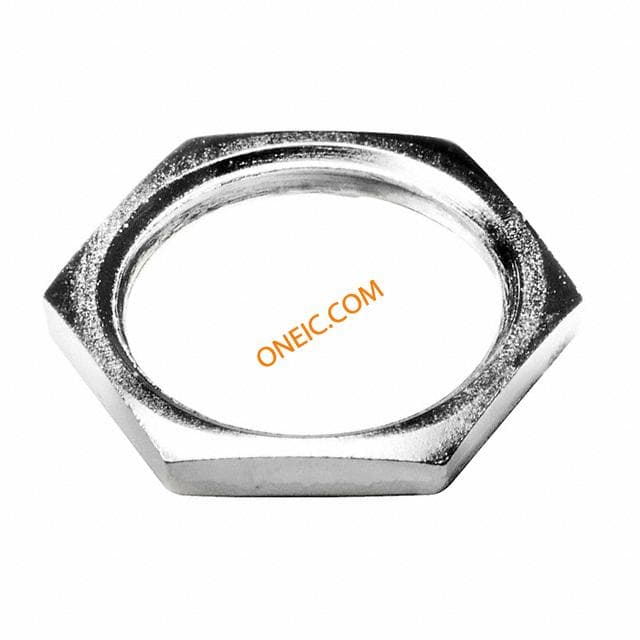

Switch Accessories HEX MOUNTING NUT Switch Access Hex Mounting Nut NUT MNT HEX METRIC M/P/S/SB/SK HEX NUT, PUSHBUTTON SWITCH HEXMOUNTINGNUT,STEELW/NICKEL
AT503M
NKK Switches

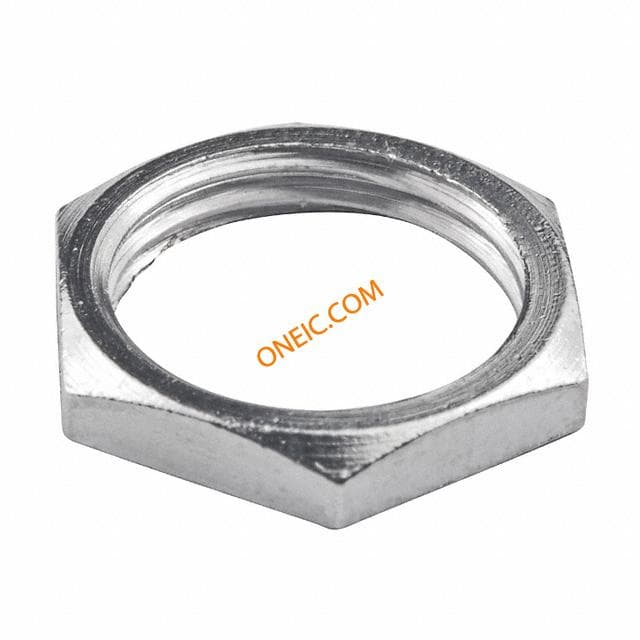

Switch Accessories 12MM HEX FACED NUT Switch Access Hex Face Nut NUT HEX FACE METRIC M12 HEX NUT, PUSHBUTTON SWITCH
AT508
NKK Switches

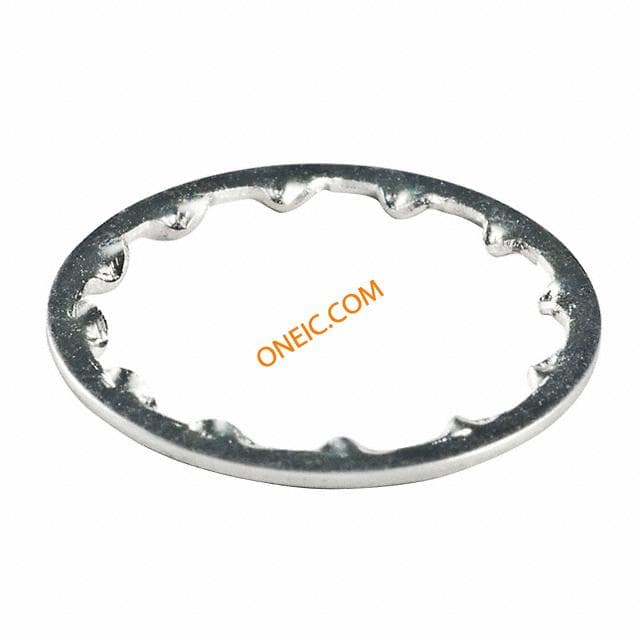

Switch Access Internal Tooth Lockwasher LOCKWASHER INTERNAL TOOTH .622" LOCK WASHER, PUSHBUTTON SWITCH Switchpart;LockwasherIntTooth;12.1mmid;FitsM,P,S,SB,SCB,SK,TL,WB,WT
