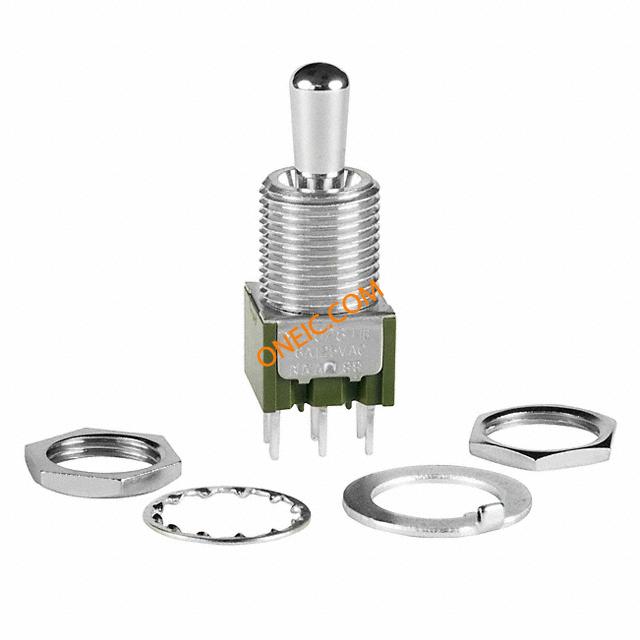

M2028BB1W03
| Manufacturer | |
| Description | Toggle Switches (ON)OFF(ON) .453 LRG BAT 12MM BUSHING PC SWITCH TOGGLE DPDT 6A 125V DPDT(ON)OFF(ON),.453InLargeBat,Large.472InThreadedwithKeyway,Silver |
| Category |
对参数有疑问？问 AI 助手
Business
| Part # Aliases | M-2028L/B-P | Product Category | Toggle Switches |
| Standard Package | 1 | ||
Compliance
| RoHS | RoHS Compliant | ||
Electrical
| Circuit | DPDT | Voltage Rating | 125V |
| Switch Function | Mom-Off-Mom | Current Rating (Max) | 6A (AC), 3A (DC) |
Mechanical
| Packaging | Bulk | Contact Form | DPDT |
| Actuator Type | Standard Round | Mounting Type | Panel Mount |
| Bushing Thread | M12 x 1 | Contact Finish | Silver |
| Mounting Style | Through Hole | Actuator Length | 11.50mm |
| Actuator Material | Brass, Chrome Plated | Termination Style | PC Pin |
| Bushing, Grommet Type | M12 | Panel Cutout Dimensions | Circular - 12.50mm Dia |
Product Info
| Series | M | Features | Epoxy Sealed Terminals |
| Illumination | Non-Illuminated | Electrical Life | 25,000 Cycles |
Environmental
| Seal Rating | Sealed | Operating Temperature | -30°C ~ 85°C |
