MS12AFW01
| Manufacturer | |
| Description | Switch Slide ON None ON SPDT Top Slide 6A 250VAC 100000Cycles Solder Lug Panel Mount SW SLIDE SPDT 6A SLV SLD 125V SWITCH, SLIDE, SPDT, 6A, 250V, PANEL Switch,Slide,Subminiature,PanelMountingw/SolderLugTerminals,SPDT |
| Category |
对参数有疑问？问 AI 助手
Business
| Standard Package | 1 | ||
Compliance
| RoHS | Lead free / RoHS Compliant | EU RoHS | Compliant |
| Tariff No | 85365080 | ||
Electrical
| Circuit | SPDT | Operation | OnNoneOn |
| Voltage - Core | :250V | Voltage Rating | 125VAC |
| Number of Poles | 1 | Switch Function | On-On |
| Dielectric Strength | 1500VAC | Current Rating (Max) | 6Amps |
| Current - Max/Contact | :6A | Voltage - Input (Min) | 250 |
| Switch Function/Rating | ON None ON | Contact Rating @ Voltage | 6A @ 125VAC |
Mechanical

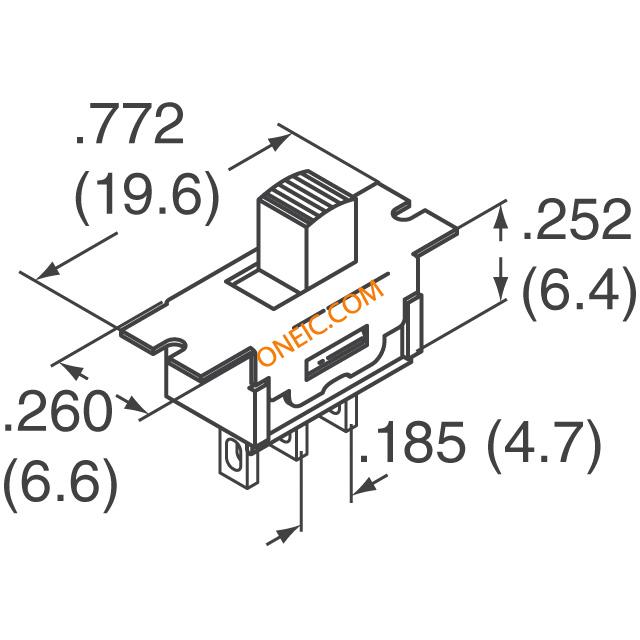

| Depth | 7.1 | Height | 16 |
| Weight | 0 | Body Finish | Miniature |
| Orientation | Vertical | Termination | SolderLugs |
| Contact Form | SPDT | Actuator Type | Standard |
| Mounting Type | Panel Mount | Terminal Type | Solder Lug |
| Contact Finish | Silver | Mounting Style | Panel |
| Contact Material | Silver Alloy | Length - Overall | 19.6 |
| Actuator Material | Glass Fiber/Polybutylene Terephth... | Termination Style | Solder Lug |
| Actuator Style/Size | Top Slide | Number of Positions | 2 |
| Mounting Hole Diameter | 0.94In. | Switch Actuation Level | SPDT |
| Contact Layout, Typical | :SPDT | 1st Connector Mounting Type | :Panel |
Product Info
| Type | Miniature | Electrical Life | 25000 |
Environmental
| Mechanical Life | 100000 | Operating Temperature | 85 |
