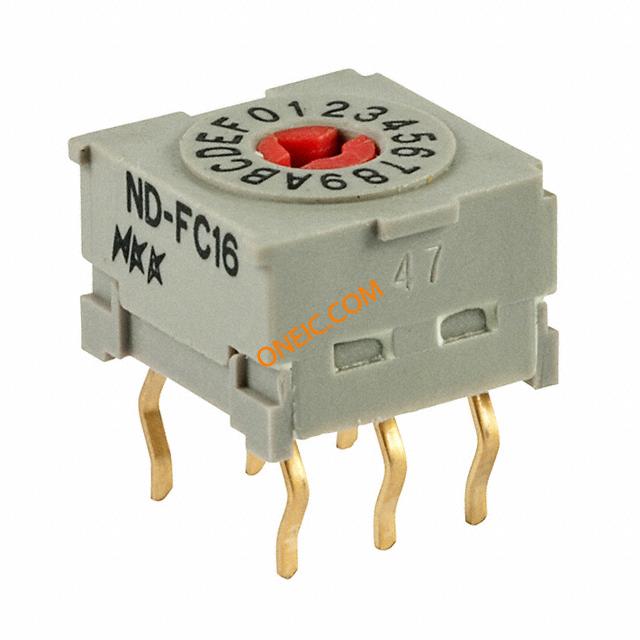

NDFC16P
| Manufacturer | |
| Description | Coded Rotary Switches 16P HEXDEC 8mm DIP SW ROTARY DIP 8MM HEX STR PC 5V ScrewdriverActuated,ComplementCoded,Hexidecimal,Straight |
| Category |
对参数有疑问？问 AI 助手
Business
| Part # Aliases | ND-FC16P | Product Category | Coded Rotary Switches |
| Standard Package | 1 | ||
Compliance
| RoHS | RoHS Compliant | ||
Electrical
| Circuit | Hexadecimal Complement | Dielectric Strength | 250 Volts |
| Contact Rating @ Voltage | 100 mA at 5 V | ||
Mechanical
| Rotation | Clockwise, Counterclockwise | Orientation | Top Actuated |
| Actuator Type | Screwdriver | Mounting Type | Through Hole |
| Actuator Level | Flush | Termination Style | Straight PC |
| Number of Positions | 16 | Actuator Height off PCB, Vertical | Flush |
Product Info
| Series | ND | Washable | Yes |
| Arrangement | 3 x 3 | Circuit Type | Hexadecimal Complement |
| Outputs and Type | Complement | ||
