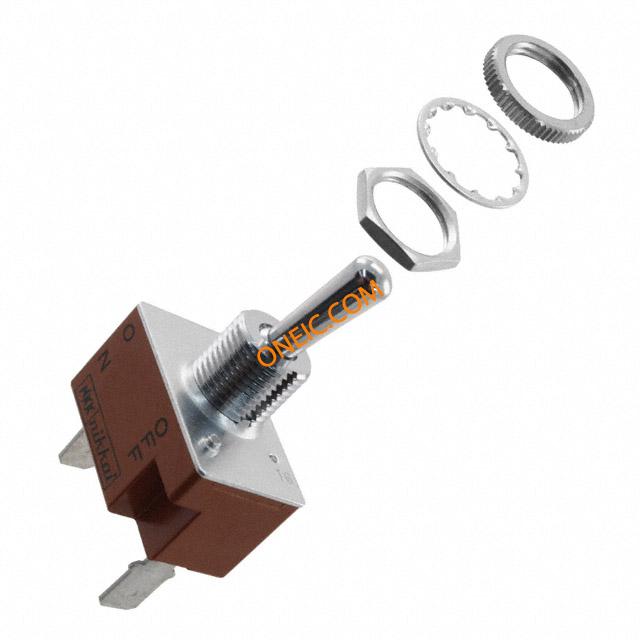

S1F
| Manufacturer | |
| Description | Toggle Switches ON-NONE-OFF SPST QUICK CONNECT Switch Toggle ON None OFF SPST Round Toggle Quick Conn 20A 250VAC 30VDC Panel Mount with Threads SWITCH TOGGLE SPST 15A 125V SWITCH, TOGGLE, SPST, 20A, 250VAC SWITCH,STANDARDSIZETOGGLE,QUICKCONNECTTERMINALS,SPST,ON-NONE-OFF |
| Category |
对参数有疑问？问 AI 助手
Business
| Part # Aliases | S-1F | Product Category | Toggle Switches |
| Standard Package | 50 | ||
Compliance
| RoHS | RoHS Compliant By Exemption | EU RoHS | Compliant |
| Tariff No | 85365080 | ||
Electrical
| Circuit | SPST | Operation | OnNoneOff |
| Voltage Rating | 125 V, 250 V | Number of Poles | 1 |
| Switch Function | ON - NONE - OFF | Voltage - Rated AC | 250V |
| Dielectric Strength | 2000VAC | Current Rating (Max) | 20 A |
| Current - Max/Contact | :20A | Voltage - Input (Min) | 250 |
| Switch Function/Rating | ON None OFF | Connector - Voltage Input | :Quick Connect |
| Voltage - Supply (Vcc/Vdd) | :30V | Voltage - DC Spark Over (Nom) | 30V |
| Voltage - Rated AC (Phase to Ground/Neutral) | :250V | ||
Mechanical
| Depth | 18 mm | Height | 57.2 mm |
| Weight | 0 | Packaging | Bulk |
| Body Finish | Standard | Termination | QCTabs |
| Contact Form | SPST | Actuator Type | Bat |
| Mounting Type | Panel Mount with Threads | Terminal Type | Quick Connect |
| Bushing Thread | M12 x 1 | Contact Finish | Tin |
| Mounting Style | Panel | Actuator Length | 17.50mm |
| Contact Material | Silver Alloy/Copper | Length - Overall | 30 mm |
| Actuator Material | Brass, Chrome Plated | Termination Style | Quick Connect |
| Actuator Style/Size | Round Toggle | Number of Positions | 2 |
| Bushing, Grommet Type | M12 | Mounting Hole Diameter | 0.492In. |
| Switch Actuation Level | SPST | Contact Layout, Typical | :SPST |
| Panel Cutout Dimensions | Circular - 12.50mm Dia | ||
Product Info
| Type | Medium Capacity Standard Size | Series | S |
| DELETED | Compliant | Features | MediumCapacity |
| Illumination | Not Illuminated | Electrical Life | 25,000 Cycles |
Environmental
| Seal Rating | Epoxy | Mechanical Life | 50000 |
| Operating Temperature | -10°C ~ 70°C | Operating Temperature - Junction | 70C |
Documents & Media
PDF Document
PDF Document
