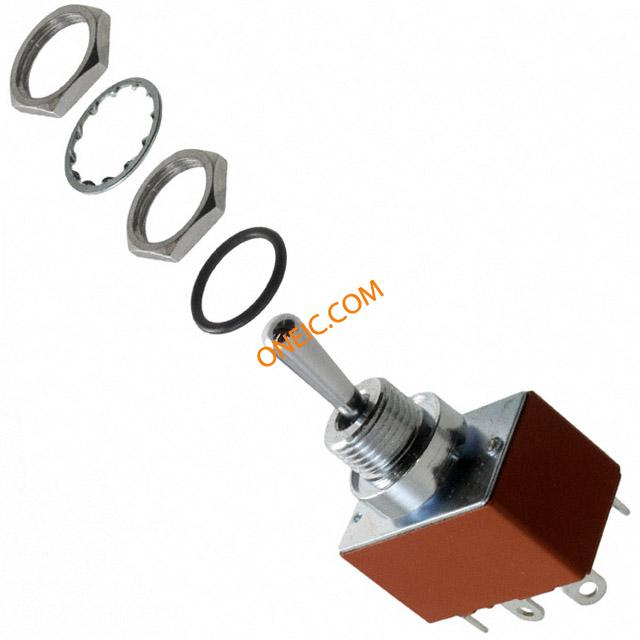

S29AW
| Manufacturer | |
| Description | SWITCH TOGGLE DPDT 15A PNL SEAL SWITCH TOGGLE DPDT 15A 125V SWITCH, TOGGLE, DPDT, 20A, 250VAC SWITCH,DPDTONOFF(ON),MEDIUMCAPACIT |
| Category |
对参数有疑问？问 AI 助手
Business
| Standard Package | 1 | ||
Compliance
| RoHS | RoHS Compliant Part | Tariff No | 85365080 |
Electrical
| Circuit | DPDT | Voltage Rating | 125V |
| Switch Function | On-Off-Mom | Current Rating (Max) | 15A (AC), 20A (DC) |
| Current - Max/Contact | :20A | Switch Function/Rating | :On-Off-(On) |
| Connector - Voltage Input | :Solder | Voltage - Supply (Vcc/Vdd) | :30V |
| Voltage - Rated AC (Phase to Ground/Neutral) | :250V | ||
Mechanical
| Weight | 0 | Packaging | Bulk |
| Actuator Type | Standard Round | Mounting Type | Panel Mount |

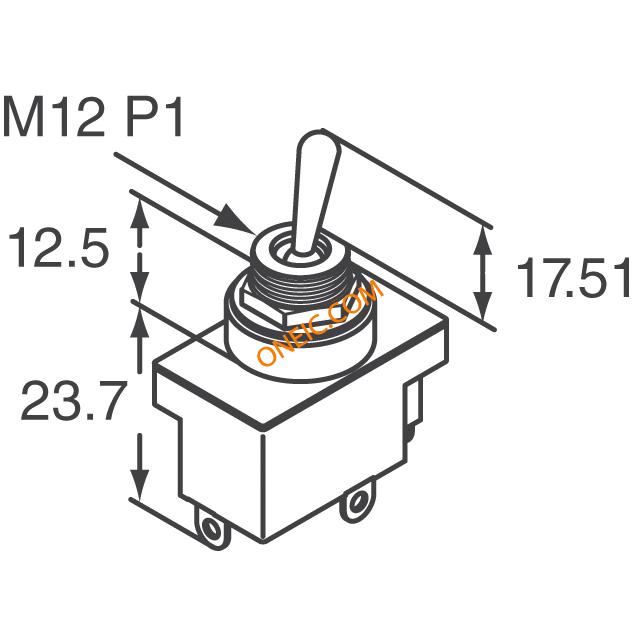

| Bushing Thread | M12 x 1 | Actuator Length | 17.50mm |
| Actuator Material | Brass, Chrome Plated | Termination Style | Solder Lug |
| Actuator Style/Size | :Toggle | Contact Layout, Typical | :DPDT |
| Panel Cutout Dimensions | Circular - 12.50mm Dia | ||
Product Info
| Illumination | Non-Illuminated | Electrical Life | 25,000 Cycles |
Environmental
| Ingress Protection | IP67 - Dust Tight, Waterproof | Operating Temperature | -30°C ~ 70°C |
