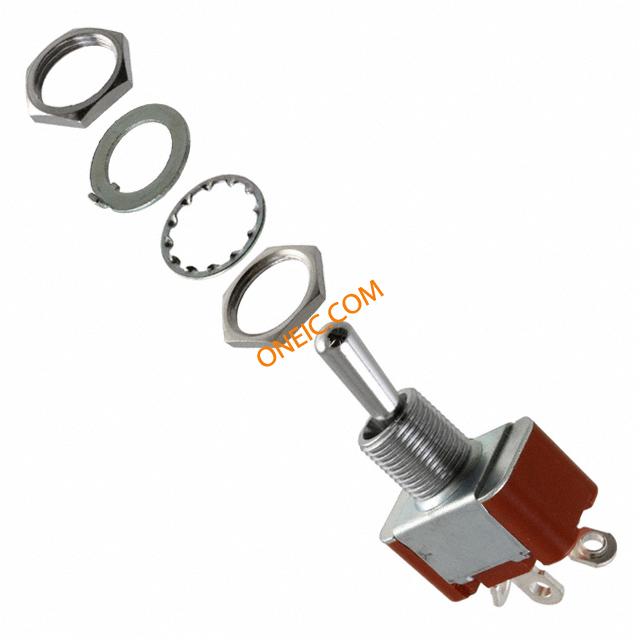

S303
| Manufacturer | |
| Description | Switch Toggle ON OFF ON SPDT Round Toggle Solder Lug 20A 250VAC 30VDC Panel Mount with Threads SWITCH TOGGLE SPDT 15A 125V TOGGLE SWITCH, SPDT, ON-OFF-ON Switch,toggle;SPDTOnOffOn;0.689"LargeBat;12mmBushing;SolderLug |
| Category |
对参数有疑问？问 AI 助手
Business
| Standard Package | 50 | ||
Compliance
| RoHS | Lead free / RoHS Compliant | SVHC | :No SVHC (20-Jun-2013) |
| EU RoHS | Compliant | Tariff No | 85365007 |
| Approval Agency | :CSA | ||
Electrical
| Circuit | SPDT | Voltage - Core | :250VAC |
| Voltage Rating | 125V | Number of Poles | :1 |
| Switch Function | On-Off-On | Contact Resistance | :10mohm |
| Current Rating - AC | :10A | Dielectric Strength | :2000VAC |
| Current Rating (Max) | 15A (AC), 20A (DC) | Current - Max/Contact | :20A |
| Insulation Resistance | :1000Mohm | Voltage - Input (Min) | 250 |
| Switch Function/Rating | ON OFF ON | Contact Rating @ Voltage | :15A |
| Connector - Voltage Input | :Solder | Voltage - Supply (Vcc/Vdd) | :30V |
| Voltage - Rated AC (Phase to Ground/Neutral) | :125V | ||
Mechanical
| Depth | :16mm | Width | :28.5mm |
| Height | :17.4mm | Weight | 0.0286 |
| Material | :Melamine phenol | Packaging | Bulk |
| Actuator Type | Standard Round | Mounting Type | Panel Mount with Threads |
| Terminal Type | Solder Lug | Thread Length | :12.0mm |
| Bushing Thread | M12 x 1 | Contact Finish | Silver |
| Actuator Length | 17.50mm | Panel Thickness | :4.7mm |
| Contact Material | Silver Alloy/Copper | Length - Overall | :17.5mm |
| Actuator Material | Brass, Chrome Plated | Termination Style | Solder Lug |
| Panel Cutout Shape | :12.5mm | Actuator Style/Size | Round Toggle |
| Number of Positions | :25000 | Switch Actuation Level | SPDT |
| Contact Layout, Typical | :SPDT | Panel Cutout Dimensions | Circular - 12.50mm Dia |
| 1st Connector Mounting Type | :Panel | ||
Product Info
| Type | Medium/High Capacity Standard Size | Illumination | Non-Illuminated |
| Electrical Life | 25,000 Cycles | ||
Environmental
| Mechanical Life | 50000 | Switching Cycles | :50000 |
| Operating Temperature | -10°C ~ 70°C | ||
